Trim, A/C and Heater Controls Rabbit From My 2009

Storage Compartments, Covers and Trim

Trim, A/C and Heater Controls Rabbit from MY 2009

Removal

- Remove the trim in the center of the instrument panel (Rabbit from MY 2009). Refer to => [ Instrument Panel Center Trim, Rabbit from MY 2009 ] Instrument Panel Center Trim, Rabbit From My 2009

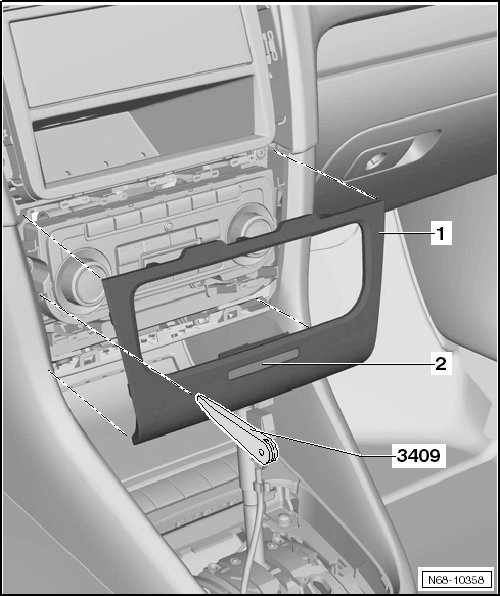

- Pry the trim - 1 - out of its mounts in the instrument panel using the trim removal wedge (3409).

- Disconnect the front passenger airbag disabled indicator lamp (K145) wiring harness - 2 - and remove the trim.





Installation

- To install, perform the steps used for removal in reverse order.
