Storage Compartment or Ashtray, Rabbit From My 2009

Storage Compartments, Covers and Trim

Storage Compartment or Ashtray, Rabbit from MY 2009

Removal

- Switch off ignition.

Vehicles with automatic transmission

- Loosen boot from cover.

Vehicles with manual transmission and Direct Shift Gearbox (DSG)

- Loosen boot from cover.

All vehicles

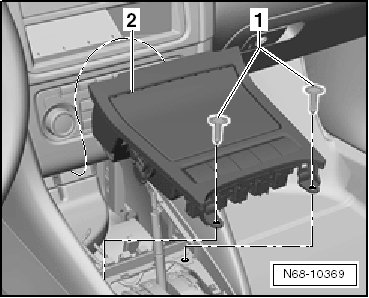

- Remove the two bolts - 1 - (1.5 Nm).





- Remove the ashtray - 2 - from center console and (depending on vehicle equipment) disconnect the wiring harnesses.

• A storage compartment may be installed in place of an ashtray. Removing the storage compartment is identical to removing the ashtray.

Installation

- To install, perform the steps used for removal in reverse order.
