Instrument Panel Center Trim, Rabbit From My 2004

Storage Compartments, Covers and Trim

Instrument Panel Center Trim, Rabbit from MY 2004

Removal

- Remove instrument panel center vent:

• Vehicles without Climatronic (Rabbit from MY 2004), refer to => [ Instrument Panel Center Vents, Vehicles without Climatronic, Rabbit from MY 2004 ] Instrument Panel Center Vents, Vehicles Without Climatronic, Rabbit From My 2004

• Vehicles with Climatronic (Rabbit from MY 2004), refer to => [ Instrument Panel Center Vents, Vehicles with Climatronic, Rabbit from MY 2004 ] Instrument Panel Center Vents, Vehicles With Climatronic, Rabbit From My 2004

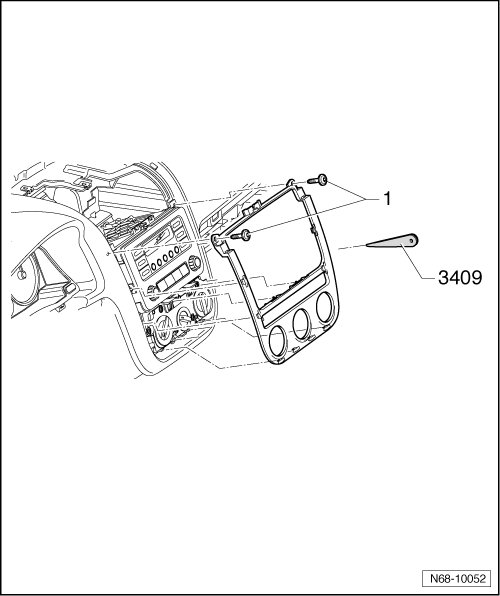

- Remove the two bolts - 1 - (1.5 Nm).

- Pry the trim out of the instrument panel using the trim removal wedge (3409).





Installation

- To install, perform the steps used for removal in reverse order.
