Center Cover, Rabbit From My 2009

Storage Compartments, Covers and Trim

Center Cover, Rabbit from MY 2009

Removal

- Remove the trim in the center of the instrument panel (Rabbit from MY 2009). Refer to => [ Instrument Panel Center Trim, Rabbit from MY 2009 ] Instrument Panel Center Trim, Rabbit From My 2009

- Remove the trim around the A/C and heater controls (Rabbit from MY 2009). Refer to => [ Trim, A/C and Heater Controls Rabbit from MY 2009 ] Trim, A/C and Heater Controls Rabbit From My 2009

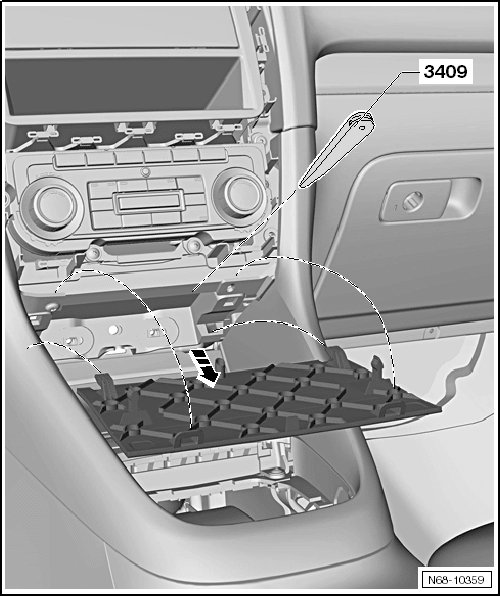

- Pry the trim out the rear mounts in the instrument panel using the trim removal wedge (3409).

- Remove the trim - in direction of arrow - from the front mounts.





Installation

- To install, perform the steps used for removal in reverse order.
