Wheel Housing Trim, 4-Door, Vehicles Without Rear Side Airbag From June 2005

Sill Panel Trim

Wheel Housing Trim, 4-door, Vehicles Without Rear Side Airbag from June 2005

• Removal and installation is described for the right side of the vehicle. Removing and installing on the left side is identical.

Removal

- Remove seat bench. Refer to => [ Bench Seat ] Rear Seats.

- Fold backrest forward.

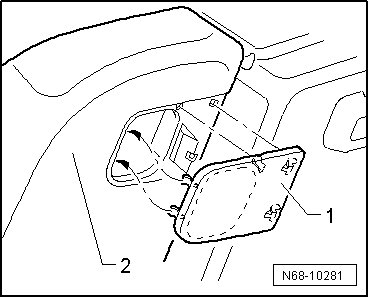

- Remove cover cap - 1 - from wheel housing trim - 2 -.

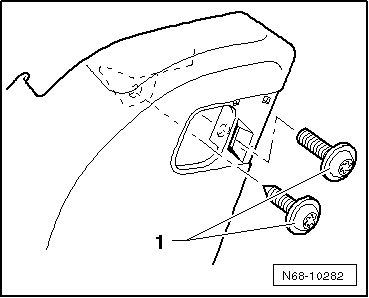

- Remove the two bolts - 1 - (1.5 Nm).





- Remove nut - 1 - (3.5 Nm).

- Loosen trim in center from door seal molding - arrow A -.

- Loosen upper area of trim - arrow B - from mount.

- Remove trim from window flange - 2 -.

- Loosen trim in lower area - arrow C - from mountings.

- Loosen trim from pins - 3 -.





Installation

- To install, perform the steps used for removal in reverse order.
