Wheel Housing Trim, 4-Door

Sill Panel Trim

Wheel Housing Trim, 4-door

• Removing and installing on the left side of the vehicle is described here. Removing and installing on the right side is identical.

Removal

- Remove the rear bench seat. Refer to => [ Bench Seat ] Rear Seats

- Remove 4-door side upholstery:

• with rear side airbags: => [ Side Upholstery with Side Airbag, 4-door ] Rear Seats

• without rear side airbag, through 06.2005: => [ Side Upholstery, 4-door ] Rear Seats

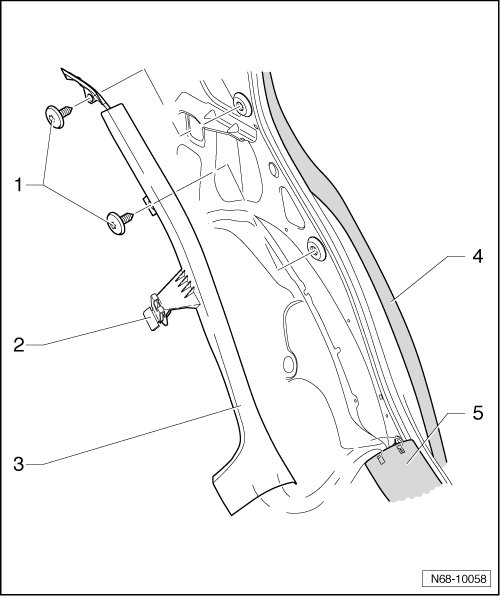

- Remove the two bolts - 1 - (1.2 Nm).

- Remove clip - 2 - from body flange.

- Pull trim - 3 - from door seal piping - 4 -.

- Pull trim out of mounts in sill panel trim - 5 -.

- Pull out trim in direction of travel under C-pillar trim panel.





Installation

- To install, perform the steps used for removal in reverse order.
