Sill Panel Trim, 2-Door

Sill Panel Trim

Sill Panel Trim, 2-door

• Removal and installation is described for the right side of the vehicle. Removing and installing on the left side is identical.

Removal

- Remove the rear bench seat from the front anchoring points. Refer to => [ Bench Seat ] Rear Seats.

• It is not necessary to completely remove the rear bench seat.

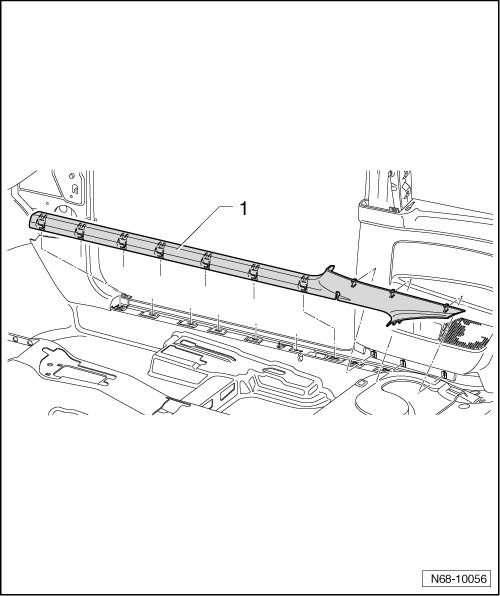

- Remove sill panel trim - 1 - out of mounts in sill, side trim and door seal molding.

• Before installing, check the seven securing clips for damage and replace if necessary.





Installation

- To install, perform the steps used for removal in reverse order.
