Rear Wheel Housing Liner

Rear Wheel Housing Liner

• Removing and installing is described only for the left wheel housing liner. Removing and installing right wheel housing liner is similar

Removing

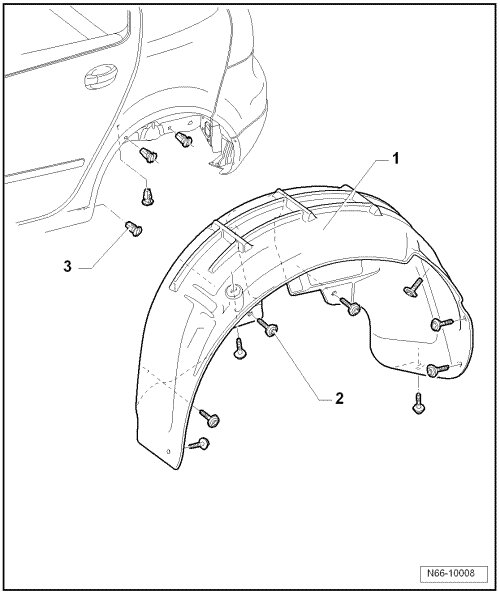

- Unbolt wheel

- Remove bolts - 2 - (Qty. 9).

- Pull off wheel housing liner - 1 -.

Installing

To install, perform the steps used for removal in reverse order.
