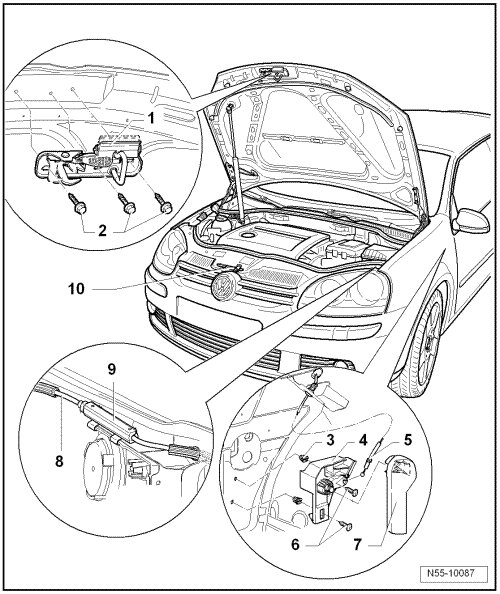

Hood Locking and Unlocking Components Assembly Overview

Hood Locking and Unlocking Components Assembly Overview





1 Catch

• Removing:

- Remove bolts - 2 - and remove catch.

• Adjusting:

- Catch can be adjusted toward the left or right in its longitudinal holes.

2 Bolt

• Qty. 3

• 10 Nm

3 Expanding nut

• Qty. 2

4 Mounting bracket

5 Release

• Clipped into mounting bracket.

6 Bolt

• Qty. 2

• 1.5 Nm

7 Operating lever

• Removing and Installing => [ Hood Operating Lever ] Service and Repair

8 Release

• Clipped in on wheel housing and lock carrier.

9 Release coupling

• disconnecting => [ Hood Release, Disconnecting ] Hood Release, Disconnecting

10 Hood lock

• Removing and Installing => [ Hood Lock ] Hood Lock

• Adjusting => [ Hood, Adjusting ] Adjustments
