Front Bumper Reinforcement: Service and Repair

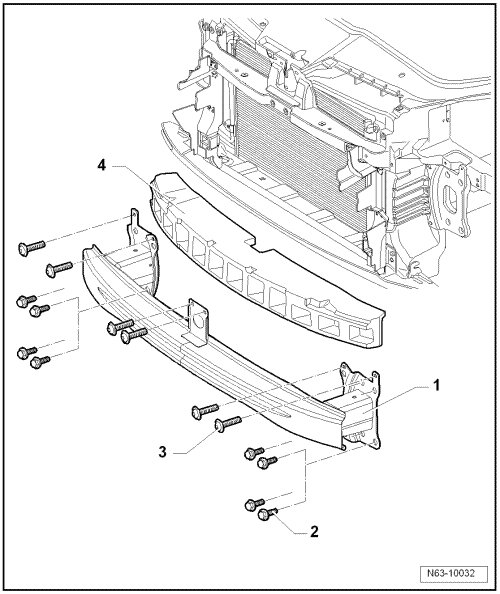

Front Bumper Carrier Assembly Overview





1 Bumper carrier

2 Bolt

• Qty.. 4 per side

• 60 Nm

3 Bolt

• Qty. 6

• 8 Nm

4 Foam piece

• Self-adhesive

• In different formations.
