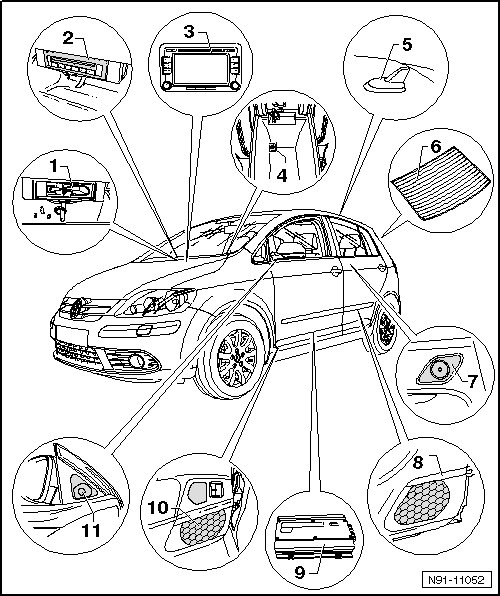

RCD 510 Radio Overview
RCD 510 Radio Overview
1 Multimedia Control Module (J650)
• Installed in center console
• For additional information, refer to => [ Multimedia Control Module ] Multimedia Control Module
• Optional CD changer or multimedia system control module. It is not possible to have both systems together because both systems have the same installation location.
2 CD Changer (R41)
• 6 disc CD changer
• Installed in center console
• Additional information, refer to => [ CD Changer ] CD Changer
• Optional CD changer or multimedia system control module. It is not possible to have both systems together because both systems have the same installation location.
3 Radio (R) (RCD 510)
• Removing and Installing, refer to => [ Radio Units and Radio Navigation System, Golf Plus ] Communication
• Overview of harness connectors, refer to => [ RCD 510 Radio Connection Overview ] RCD 510 Radio Connection Overview
• Transport protection, refer to => [ CD Changer Transport Protection Device, Activating/Deactivating ] CD Changer Transport Protection Device, Activating/Deactivating
• Electronic antitheft system, refer to => [ Electronic Antitheft System ] Electronic Antitheft System
4 External Audio Source Connection (R199)
• Installed in the storage compartment under the center armrest
5 Telephone, Navigation and Auxiliary Heater Remote Control Antenna (R66)
• Installed on rear of roof
• Additional information, refer to => [ Antenna ] Antenna
6 Window Antenna
• Installed in the rear window, for radio reception with antenna diversity
• Antenna for digital radio reception, DAB, also optional
• For additional information, refer to => [ Antenna ] Antenna
7 Right Rear Treble Speaker (R16) and Left Rear Treble Speaker (R14)
• Installed in door trim of left and right rear doors
• For additional information, refer to => [ Speaker Systems ] Description and Operation
8 Right Rear Bass Speaker (R17) and Left Rear Bass Speaker (R15)
• Installed in door trim of left and right rear doors
• For additional information, refer to => [ Speaker Systems ] Description and Operation
9 Digital Sound System Control Module (R12)
• Installed under left front seat
• For additional information, refer to => [ Sound System Amplifier ] Description and Operation
10 Right Front Midrange Speaker (R104) and Left Front Midrange Speaker (R103), Right Front Bass Speaker (R23) and Left Front Bass Speaker (R21)
• Installed in door trim of left and right front doors
• Midrange speakers are only installed in conjunction with sound system
• Midrange and bass speakers are installed as one unit.
• Only the bass speaker is installed here when there is no sound system. Midrange frequencies play through the bass and treble speakers.
• For additional information, refer to => [ Speaker Systems ] Description and Operation
11 Right Front Treble Speaker (R22) and Left Front Treble Speaker (R20)
• Installed in triangle window of left and right front doors
• For additional information, refer to => [ Speaker Systems ] Description and Operation
