Tightening Specifications

Transmission

Special tools, testers and auxiliary items required

• Engine Support Bridge (10 - 222 A)

• Engine Support Feet (10 - 222 A/ 8)

• Additional Hooks ( 10 - 222 A/2)

• Engine Support Adapter (10 - 222 A/3)

• Adapter (10 - 222 A/16)

• Transmission Support (3282)

• Shackle (10-222 A/12)

• Adjustment Plate (3282/39)

• Engine/Transmission Jack (V.A.G 1383A)

• Torque Wrench (5-50 Nm) (V.A.G 1331)

• Torque Wrench (40-200 Nm) (V.A.G 1332)

• Transmission Support Jig (3336)

• Grease for Clutch Plate Splines (G 000 100)

Tightening Specifications

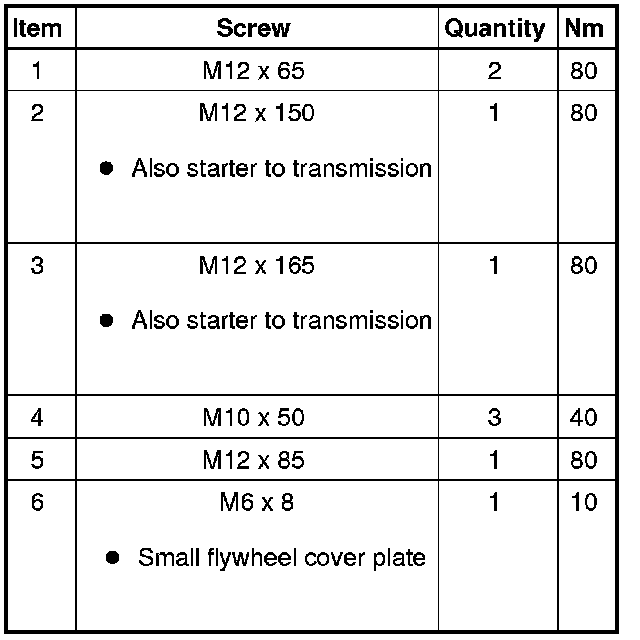

Transmission to Engine Bolts










- A - alignment sleeves for centering

Transmission Bracket to Transmission Bolts





- Replace the bolts - arrows -.

- Tighten the bolts hand-tight.

- Tighten the bolts to the 40 Nm + 90 degrees (1/4) additional turn.

Transmission Mount to Body Bolt





- Replace the bolts - arrows -.

- Tighten the bolts hand-tight.

- Tighten the bolts to the 60 Nm + 90 degrees (1/4) additional turn.

Transmission Support to Transmission Bracket and Transmission Bolts





- Replace the bolts - arrows -.

- Tighten the bolts hand-tight.

- Tighten the bolts to the 20 Nm + 90 degrees (1/4) additional turn.

Drive axle to flange shaft.
