Transmission Housing and Shift Mechanism

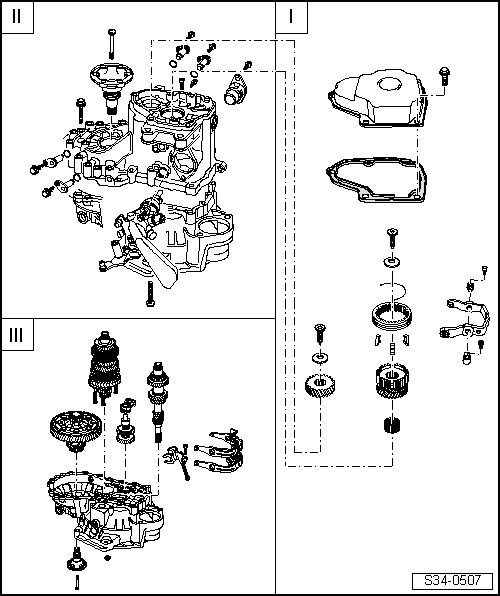

Transmission Component Overviews

Transmission housing and 5th gear removing and installing. Refer to => [ Transmission Housing Cover and 5th Gear ] Transmission Housing Cover and 5th Gear.

Transmission disassembly and assembly. Refer to => [ Transmission ] Transmission.

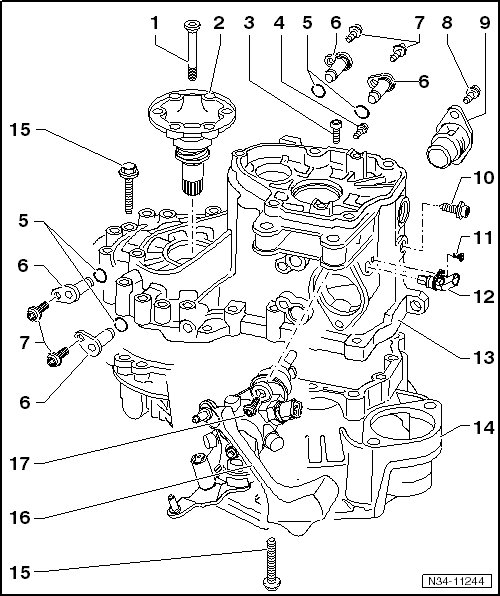

Transmission Housing and Shift Mechanism






1 Bolt

• 25 Nm

2 Flange Shaft with Pressure Spring

• Removing and installing, refer to => [ Left Flange Shaft Seal ] Left Flange Shaft Seal.

3 Bolt

• 25 Nm

• Always replace

• Self-locking

• For the reverse shaft support.

4 Bolt

• 30 Nm

• Always replace

• Self-locking

• For the reverse shaft support.

5 O-ring

• Always replace

6 Pivot Pin

7 Bolt

• 25 Nm

8 Bolt

• 25 Nm

9 Sealing Cap

10 Bolt

• 25 Nm

• Always replace

• For the reverse shaft support.

11 Bolt

• 5 Nm

12 Transmission Neutral Position Sensor (G701)

• For vehicles with the start/stop system.

13 Transmission Housing

• Remove together with the 5th gear, refer to => [ Transmission ] Transmission.

• Disassembly and assembly, refer to => [ Transmission and Clutch Housings ] Transmission and Clutch Housings.

14 Clutch Housing

• Disassembly and assembly, refer to => [ Transmission and Clutch Housings ] Transmission and Clutch Housings.

15 Bolt

• 25 Nm + 90 degrees (1/4) additional turn.

• Always replace

16 Selector Lever with Selector Cover

• (Shift unit)

• Disassembly and assembly, refer to => [ Shift Unit ] Shift Unit.

17 Bolt

• 25 Nm
