Steering - Sensor Can't Be Adapted When Replacing Module
48 08 02May 29, 2008
2017881

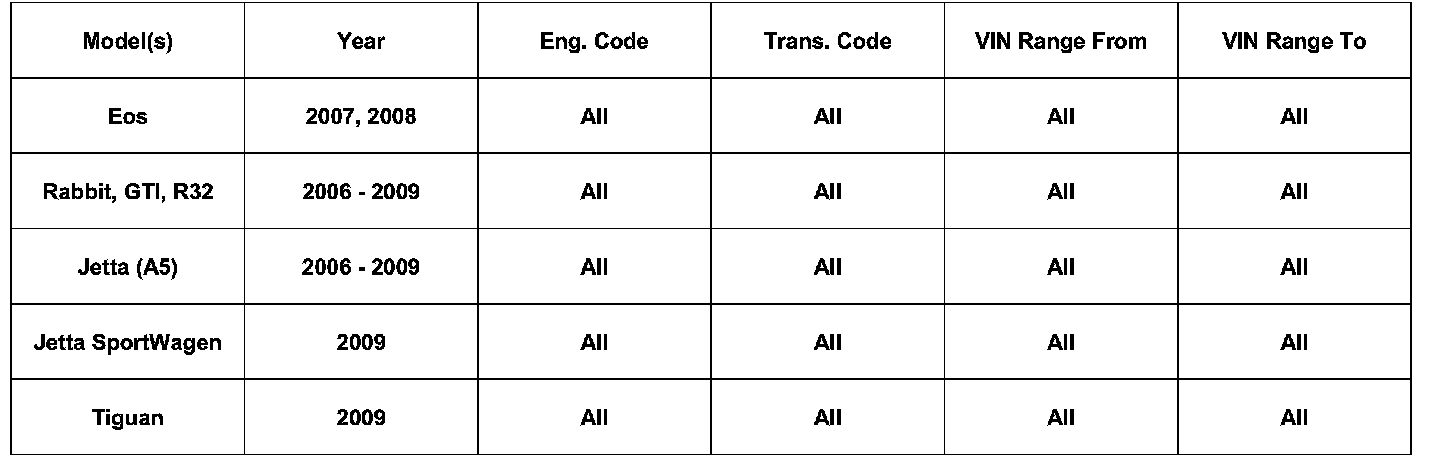

Affected Vehicles
Condition
Steering Angle Sensor, Cannot be Adapted
Steering angle sensor cannot be adapted after the steering wheel electronics module -J527- has been replaced.

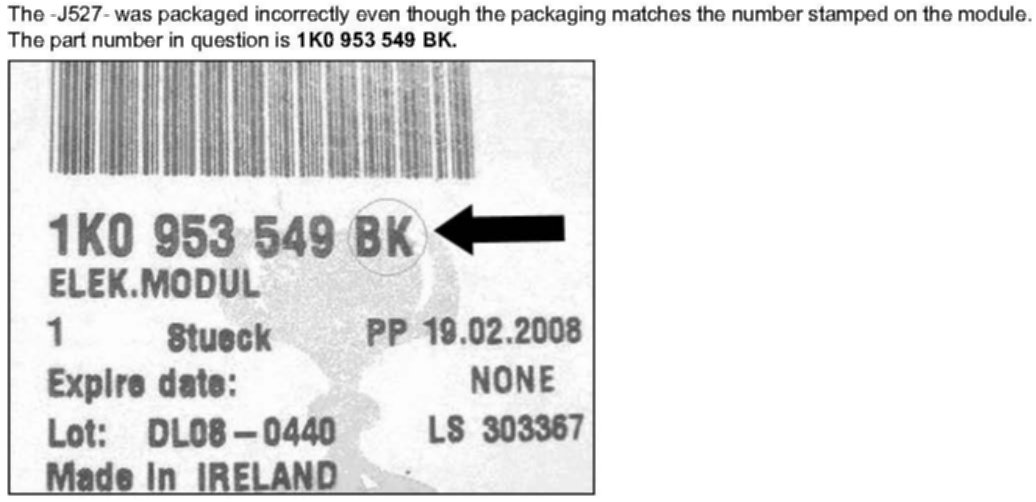

Technical Background
Production Solution
Not applicable.
Service
To verify the correct part has been received, the part number that is stamped on the case must be compared to part number recovered with the scan tool.
If a fault log has been printed since the part was installed:
^ Compare part number under "Steering Column Electronics" to component part number
If a fault log has not been printed since -J527- replacement, perform the following:
^ Select "Vehicle Self Diagnosis"
^ Select "On Board Diagnostics (OBD)"
^ Select "16 - Steering Wheel Electronics"
^ Review part number in upper right hand of screen to verify the index is Not "AM". If "AM" is shown, replace the -J527-.
Warranty
Information only.
Required Parts and Tools
Not applicable.
Additional Information
All part and service references provided in this Technical Bulletin are subject to change and/or removal.
Always check with your Parts Dept. and Repair Manuals for the latest information.
