Relay Arrangements, Under Left Instrument Panel, Electronics Box Low

Relay

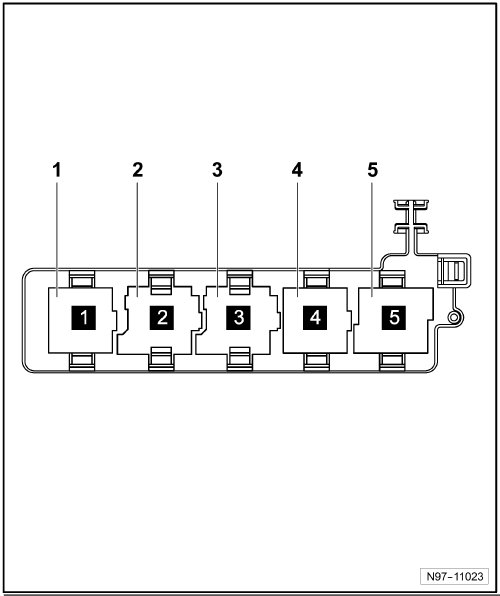

Relay Arrangements, under left instrument panel, electronics box Low







1 - Fresh Air Fan Relay -J13- (53)
• Only auxiliary heater
• From May 2005
• through May 2005 => Page Relay Arrangements Of Relay Carrier On Vehicle Electrical System Control Module

1 - Preheating Coolant, Low Heat Output Relay -J359- (373)

2 - Auxiliary Heater Operation Relay -J485- (449)

2 - Preheating Coolant, High Heat Output Relay -J360- (370)

3 - Headlamp Washer Relay -J39- (53)

4 - Auxiliary Engine Coolant (EC) Pump Relay -J496- (449)
• Only engine code BLG

4 - Fuel Primer Relay -J643- (449)
• Only engine code BCA

4 - Fuel Pump (FP) Relay -J17- (449)

5 - Power Supply Relay (terminal 50) -J682- (433)
• From May 2006 identification number (53)
• Secure relay sockets 2 and 3 with strips of adhesive tape placed over
each other in the shape of an X
