Position Of Relays On Electronics Box High, From November 2005

Relay

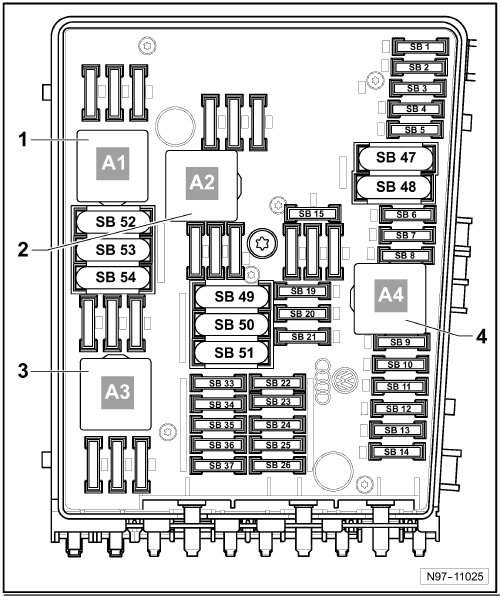

Position of Relays on Electronics Box High, from November 2005







1 - Engine Component Power Supply Relay -J757- (167)
• Connection A1

2 - Auxiliary Engine Coolant (EC) Pump Relay -J496- (100)
• Connection A2

3 - Not used
• Connection A3

4 - Motronic Engine Control Module (ECM) Power Supply Relay -J271- (100)
• Connection A4
