Overview of Ground Connections In Interior

Ground Connections

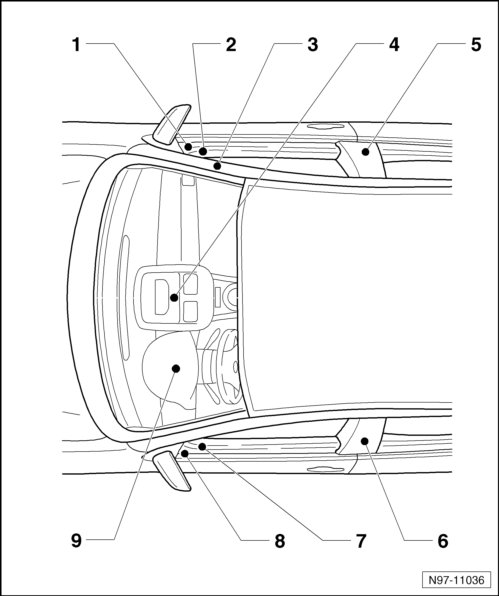

Overview of Ground Connections in interior







1 - Ground Connection (on right lower A-pillar) -43-

2 - Ground Connection (in front right footwell) -47-

3 - Ground Connection (on right A-pillar) -638-

4 - Ground Connection (behind instrument panel, center) -45-

5 - Ground Connection (on right lower B-pillar) -78-

6 - Ground Connection (on left lower B-pillar) -77-






7 - Ground Connection (in front left footwell) -602-

8 - Ground Connection (on left lower A-pillar) -44-

9 - Ground Connection (on upper steering column) -605-






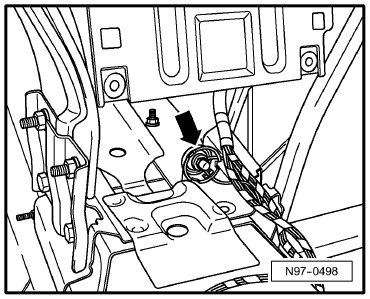

(638) - Ground Connection (on right A-pillar) -Arrow A-
- Torque Setting M6 9+/-1 Nm

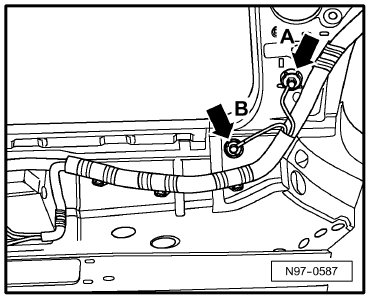

(47) - Ground Connection (in front right footwell) -Arrow B-
- Torque Setting M6 9+/-1 Nm
• Not applicable from May 2006

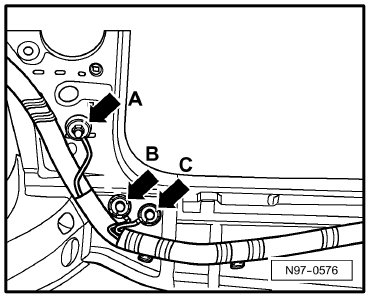

(43) - Ground Connection (on right lower A-pillar) -Arrow C-
- Torque Setting M6 9+/-1 Nm





(602) - Ground Connection (in front left footwell) -Arrow B-
- Torque Setting M6 9+/-1 Nm
(44) - Ground Connection (on left lower A-pillar) -Arrow B-
- Torque Setting M6 9+/-1 Nm

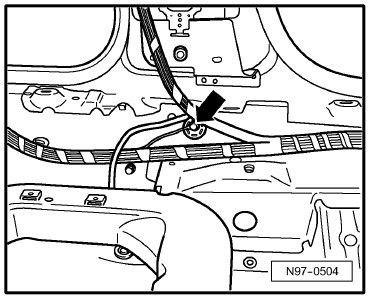

(45) - Ground Connection (behind instrument panel, center) -Arrow-
- Torque Setting M6 9+/-1 Nm

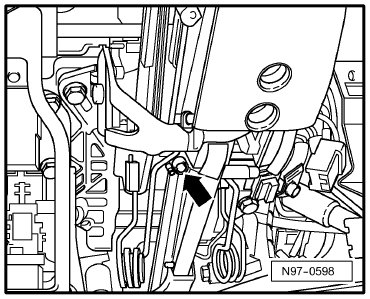

(605) - Ground Connection (on upper steering column) -Arrow-
- Torque Setting M6 9+/-1 Nm

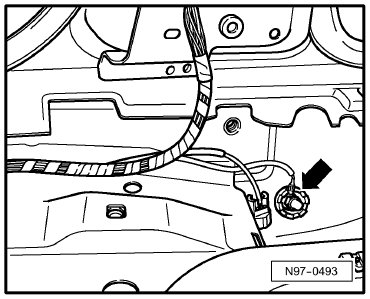

(78) - Ground Connection (on right lower B-pillar) -Arrow-
- Torque Setting M6 9+/-1 Nm
• Not applicable from May 2006






(77) - Ground Connection (on left lower B-pillar) -Arrow-
- Torque Setting M6 9+/-1 Nm
• Not applicable from May 2006
