Washer Fluid Level Switch: Service and Repair

Windshield Washer Fluid Level Sensor

• Depending on equipment, the component location of the Windshield Washer Fluid Level Sensor (G33) may deviate slightly from the illustrations. Removal is performed in the same way.

Removing

- Switch off ignition, switch off all electrical consumers and remove ignition key.

- Remove front bumper cover Removal and Installation.

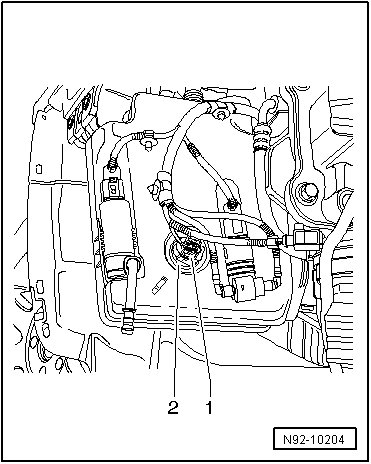

- Disconnect harness connector - 1 - on Windshield Washer Fluid Level Sensor (G33).





- Pull Windshield Washer Fluid Level Sensor (G33 ) - 2 - out of its rubber seal.

- If necessary, collect the draining fluid in a suitable container.

Installing

Install in reverse order of removal noting the following:

- Bleed headlamp washer system after completing assembly work. Refer to=> [ Headlamp Washer System, Bleeding ] Procedures.
