Impact Sensor: Locations

Airbag Systems

Airbag Crash Sensors




Side Front Airbag Crash Sensors







3 - Side airbag crash sensor on driver side -G179- and Side airbag crash sensor on front passenger side -G180-
• Driver and passenger side crash sensors are similarly located in the outer door panel subframe



Front Airbag Crash Sensors

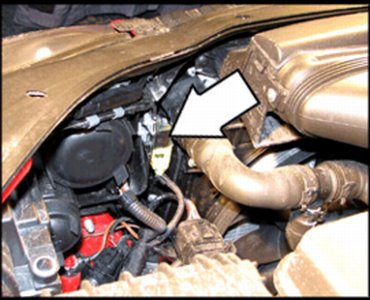

Arrow - Front airbag crash sensor for front passenger side -G284-
- Front airbag crash sensor for driver side -G283- is similar location


Side Rear Airbag Crash Sensor







4 - Rear side airbag crash sensor on driver side -G256- and Rear side airbag crash sensor on front passenger side -G257-
• Both the driver and passenger side rear side crash sensors are similarly located in front of the rear wheel housing
• Location applies to the 4 door and 2 door vehicles
