Windshield Wiper Switch

Steering Column Switch

Windshield Wiper Switch

CAUTION!
The removal and installation of individual steering column switch components must be done in the specified sequence. Refer to => [ Steering Column Switch ] Testing and Inspection.

Removing

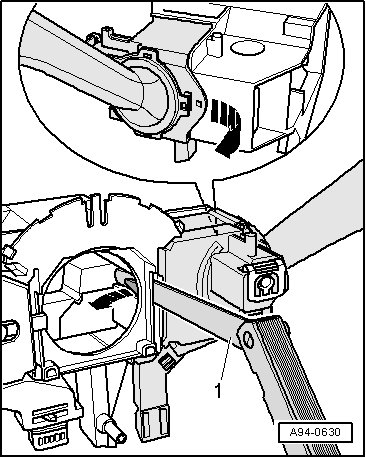

• For reasons of clarity, steering column switches are depicted as removed in the illustration.

- Release retaining clips - arrows - using a 1.0 mm feeler gauge - 1 - and remove Windshield Wiper Switch (E) toward rear (toward rear of vehicle).





Installing

Install in reverse order of removal, noting the following:

• Windshield Wiper Switch (E) must engage audibly.
