Turn Signal Switch

Steering Column Switch

Turn Signal Switch

CAUTION!
The removal and installation of individual steering column switch components must be done in the specified sequence. Refer to=> [ Steering Column Switch ] Testing and Inspection.

• "Turn signal switch" consists of the components Turn Signal switch (E2), Headlamp Dimmer/Flasher Switch (E4) and depending on equipment (CCS) Cruise Control Switch (E45).

• For reasons of clarity, steering column switches with Cruise Control Switch (E45) are depicted as removed in the illustration.

Removing

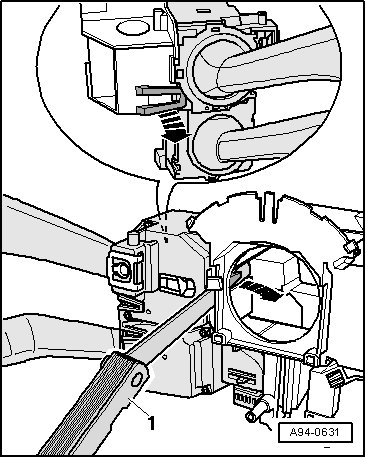

- Release retaining clips - arrows - using a 1.0 mm feeler gauge - 1 - and remove "turn signal switch" toward rear (toward rear of vehicle).





Installing

Install in reverse order of removal, noting the following:

• "Turn signal switch" must engage audibly.
