Steering Angle Sensor






Steering Column Switch

Steering Angle Sensor

CAUTION!
The removal and installation of individual steering column switch components must be done in the specified sequence. Refer to=> [ Steering Column Switch ] Testing and Inspection.

Removing

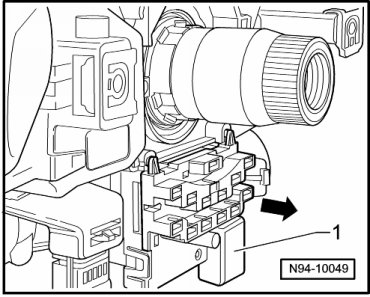

- Remove Steering Angle Sensor (G85) - 1 - toward rear from steering column switches - arrow -.

Installing

Install in reverse order of removal.
