Dimmer Switch: Service and Repair

Instrument Panel Lamps and Switches

Headlamp Adjuster and Instrument Panel Illumination Dimmer Switch

• Headlamp Adjuster (E102) and Instrument Panel Light Dimmer Switch (E20) comprise one component.

Removing

- Turn off the ignition and all electrical consumers.

- Remove light switch => [ Instrument Panel Lamps Light Switch ]. Instrument Panel Lamps Light Switch

- Remove storage compartment on driver's side

- Disconnect electrical connection - arrow -.

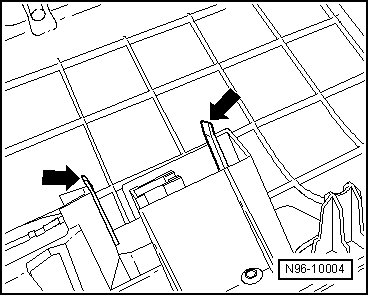

- Disengage retaining tabs - arrows - and remove adjuster and regulator.





Installing

Install in reverse order of removal.
