Fuel Door Lock Switch: Service and Repair

Door Lamps and Switches

Fuel Tank Lid Unlock Button

• Push Button Illumination (L76), which cannot be replaced separately, is integrated in Fuel Tank Lid Unlock Button (E319).

Removing

- Turn off the ignition and all electrical consumers.

- Remove door trim

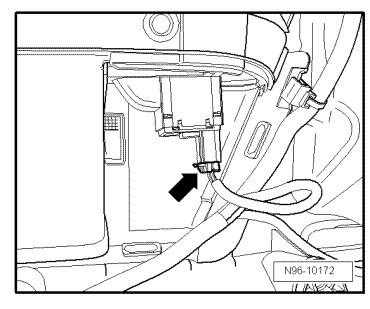

- Disconnect electrical connection - arrow -.

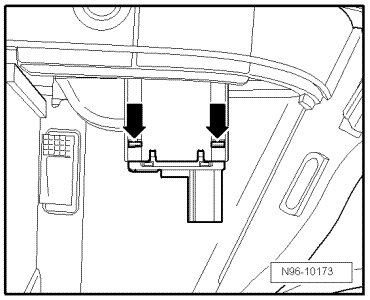

- Disengage retaining tabs - arrows - and remove switch from door trim.





Installing

Install in reverse order of removal.
