Fuel Pump Control Unit: Locations
Control modules in rear part of vehicle
Fuel Pump (FP) Control Module -J538-
Component Location:

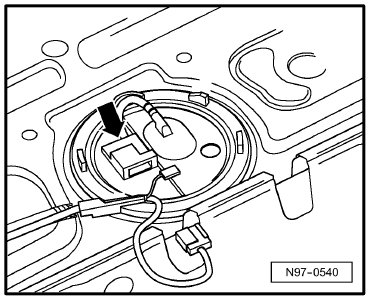

Below rear seat, right, on fuel delivery unit -Arrow-
Pin Arrangements:
A - Fuel Pump (FP) Control Module -J538-
Connector:
B - 10-Pin Connector -T10n-, on wiring harness
