Engine Controls - MIL ON/DTC P150A Stored In Memory

011006

April 1, 2010

2022598

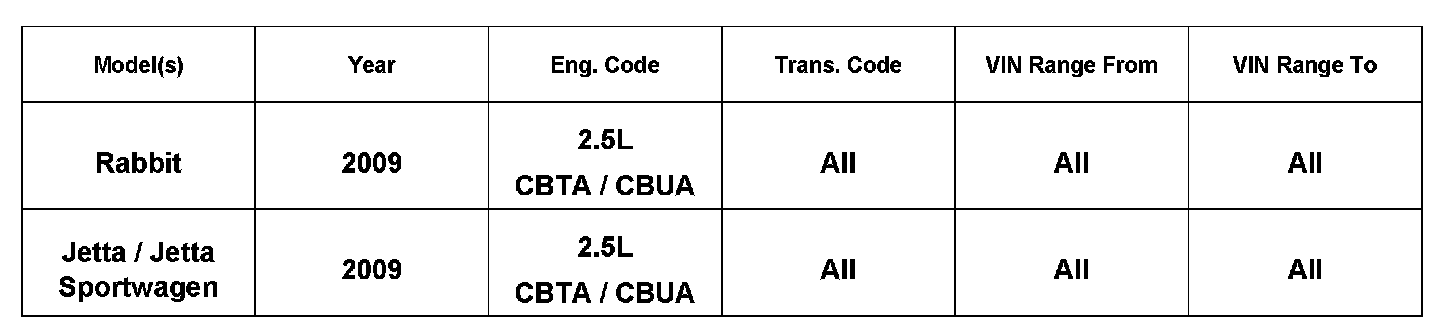

Vehicle Information

Update Programming to Eliminate DTC PI5OA Stored in ECM Fault Memory





This Technical Bulletin addresses the Diagnostic Trouble Code (DTC) on 2009 Jetta / Jetta Sportwagen 2.5L and Rabbit 2.5L vehicles equipped with the ME17.5 engine management system with a MAP-sensor.

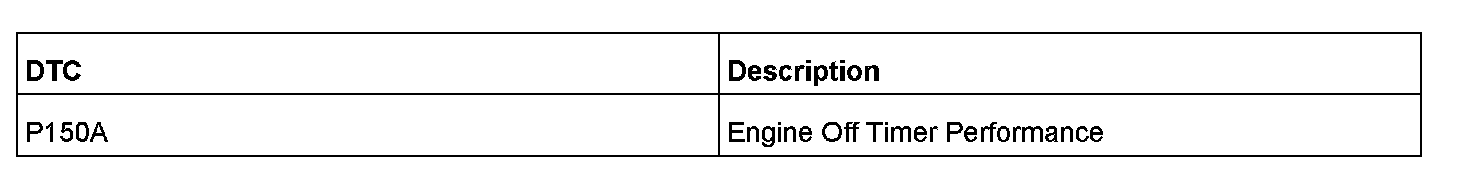

Customers may complain of a MIL ON condition, which is caused by DTC P150A. The condition as described does not affect vehicle performance or operation.

Improved software was introduced in production.

Service








Update Programming Procedure:

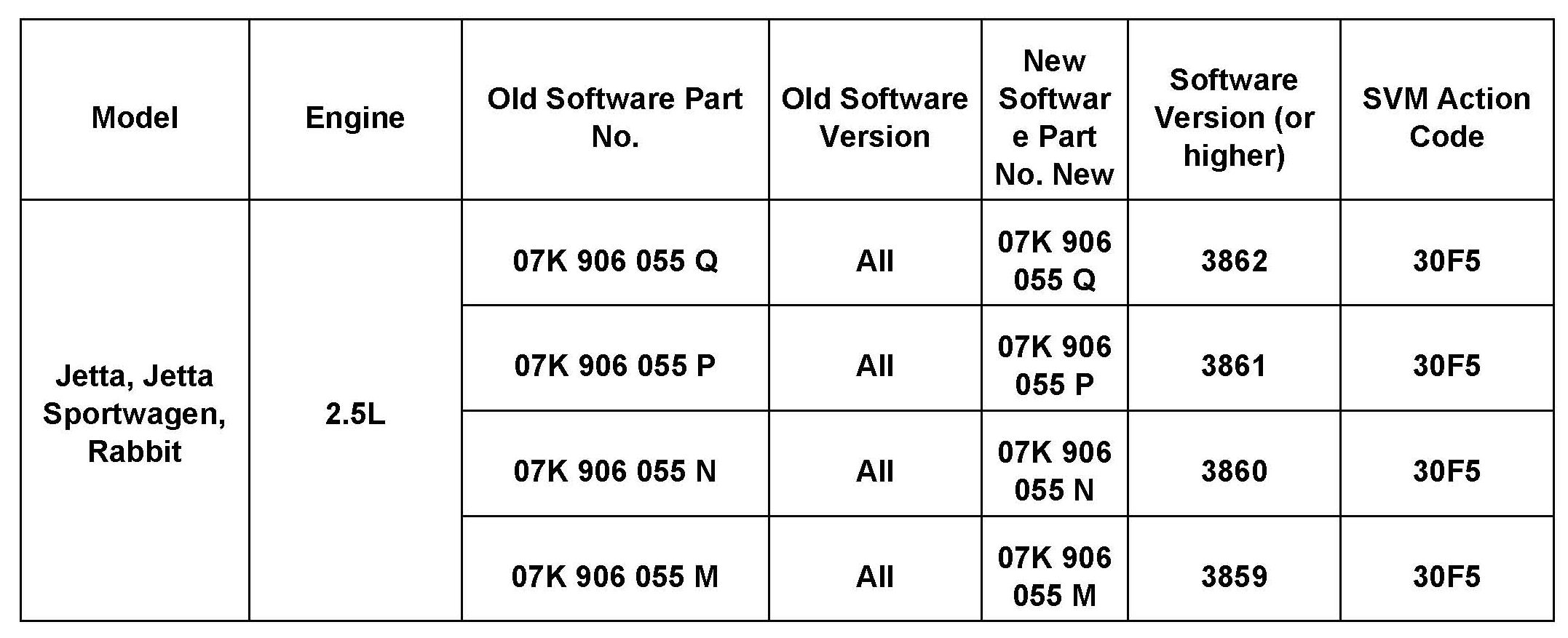

^ Update the Engine Control Module using the SVM action code as listed in the table.

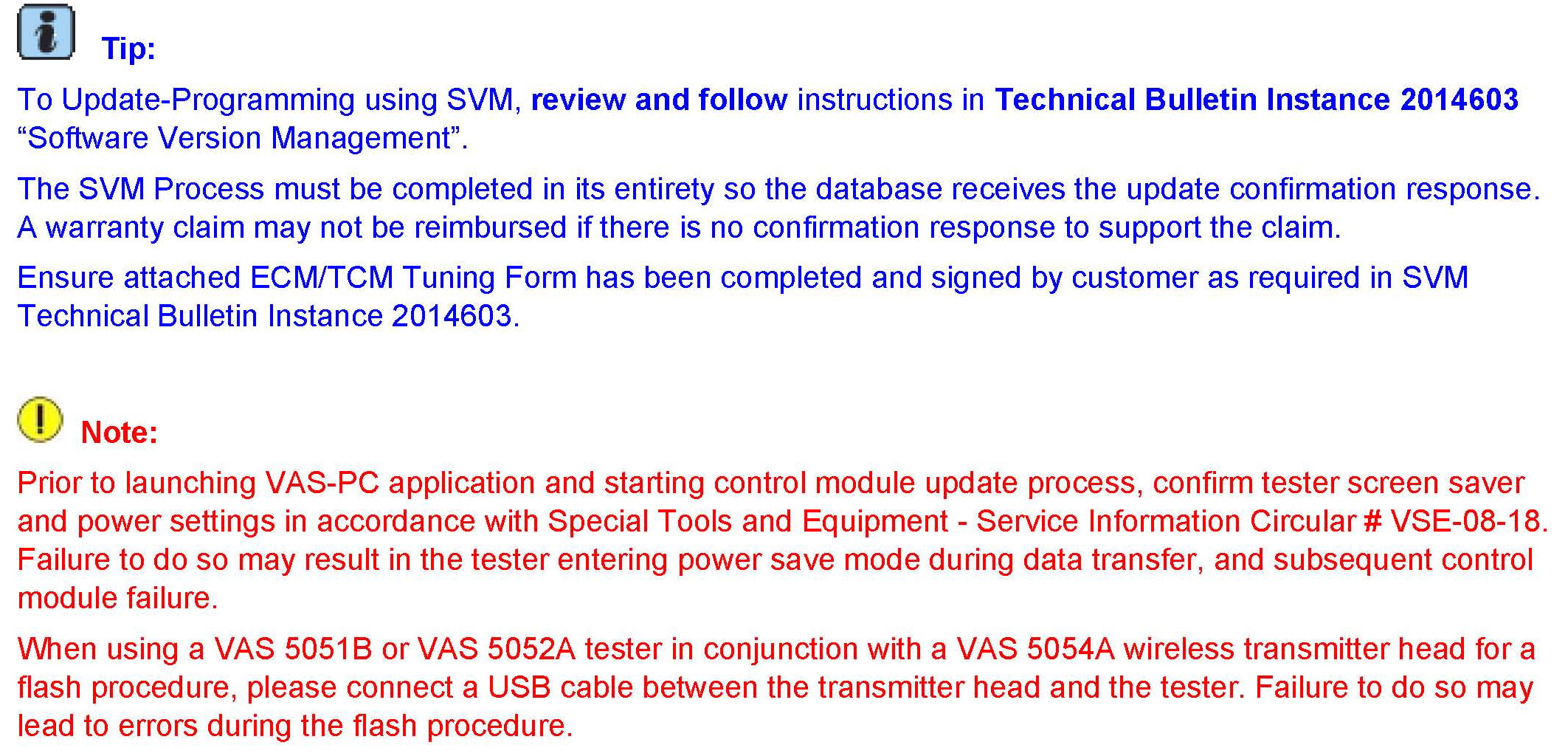

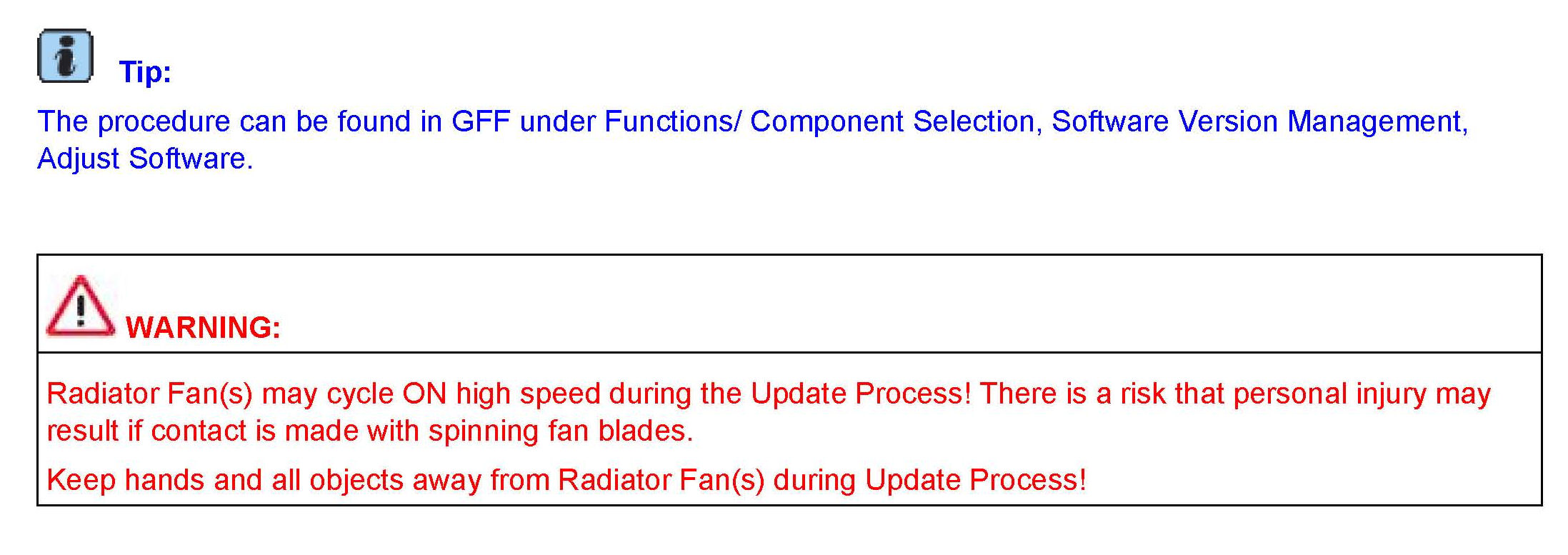

Tip and Warning

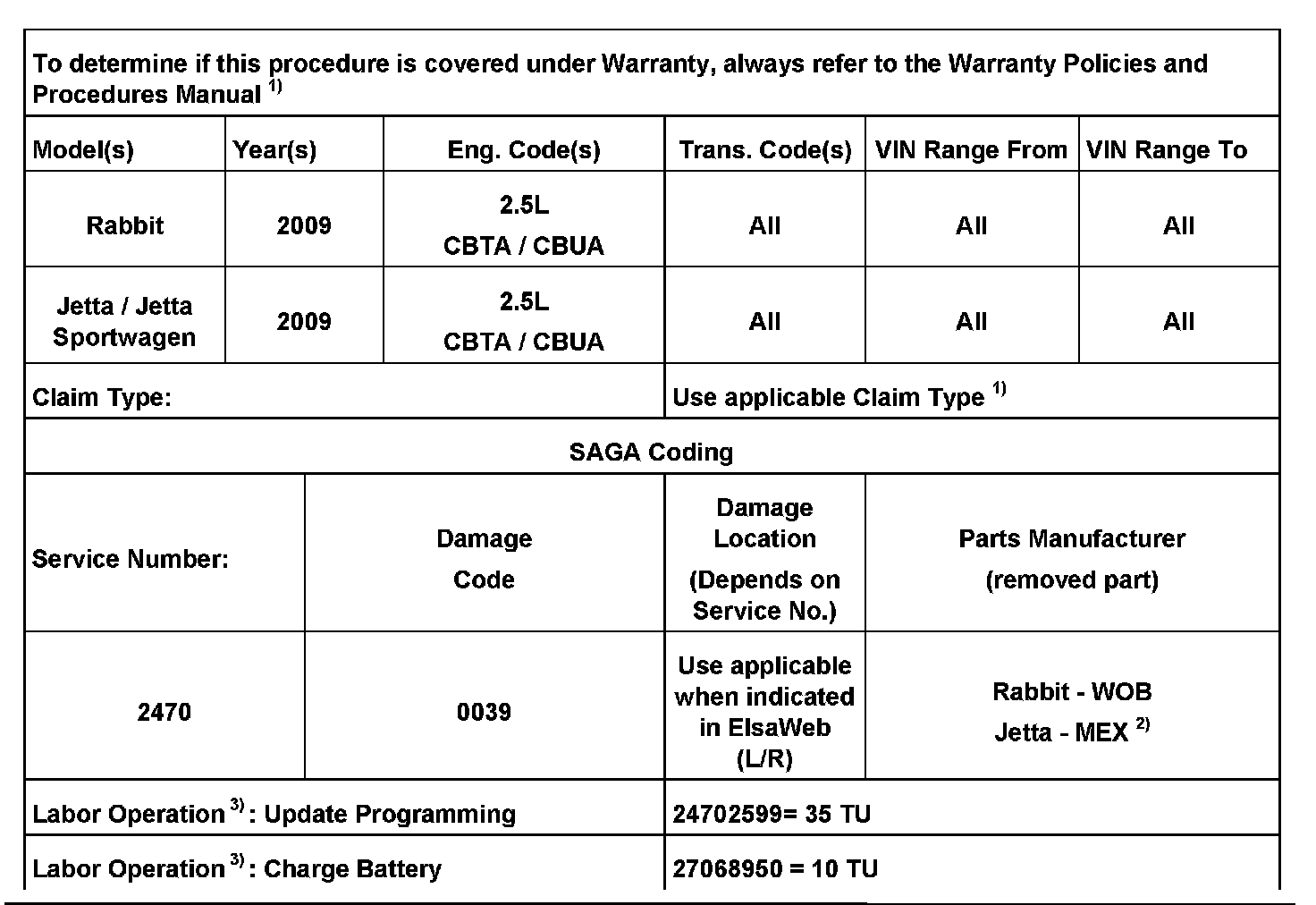

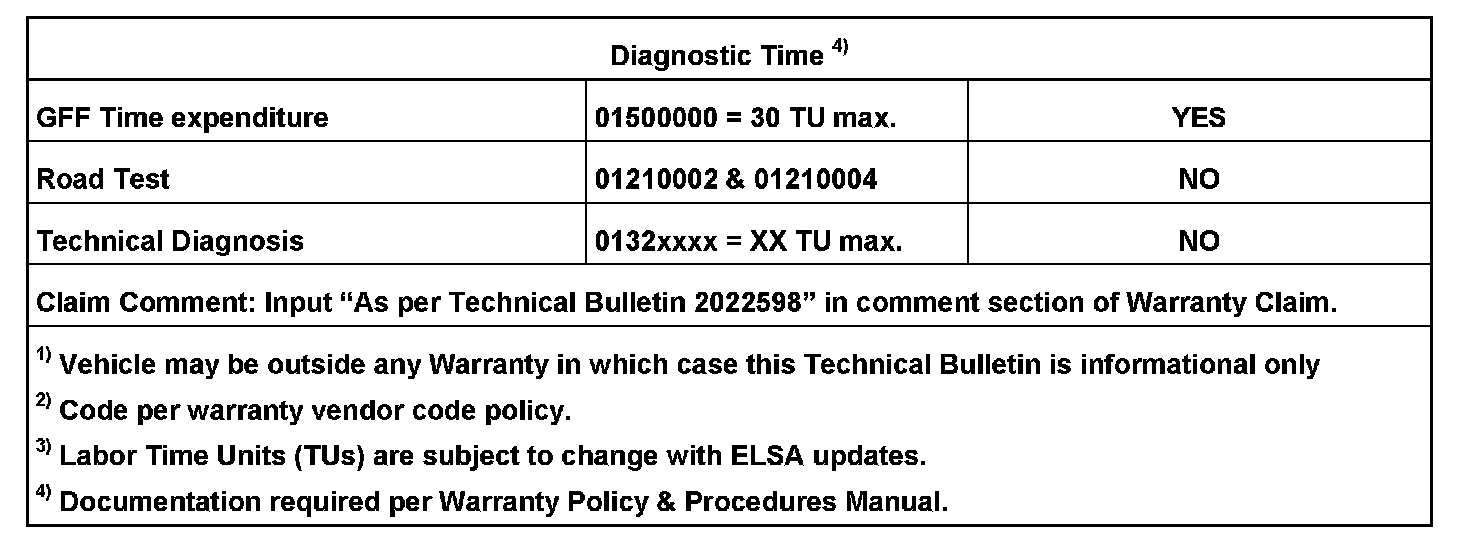

Warranty

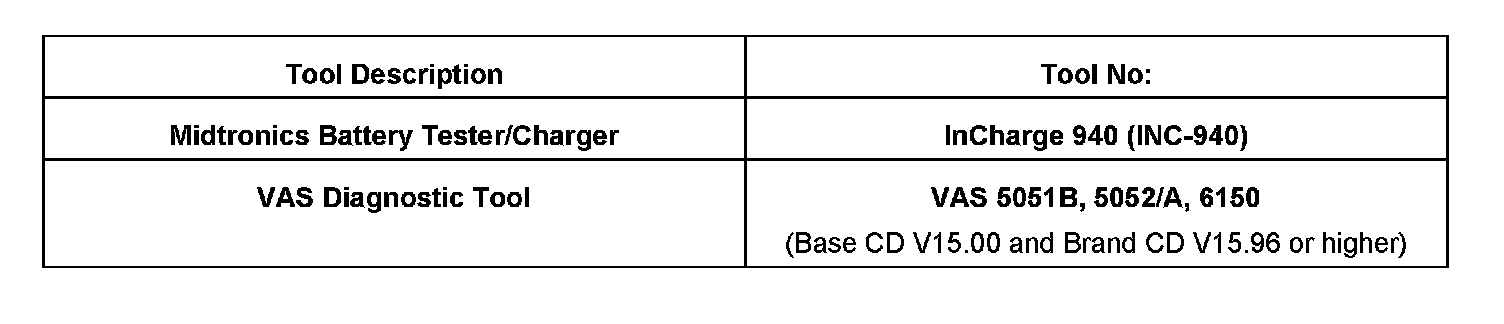

Required Parts and Tools





No Special Parts required.

Additional Information

All part and service references provided in this Technical Bulletin are subject to change and/or removal. Always check with your Parts Dept. and Repair Manuals for the latest information.
