Electronic Brake Control Module: Locations

Control modules in front part of vehicle

ABS/EDL Control Module -J104-




Component Location:







On firewall in engine compartment, right -Arrow-

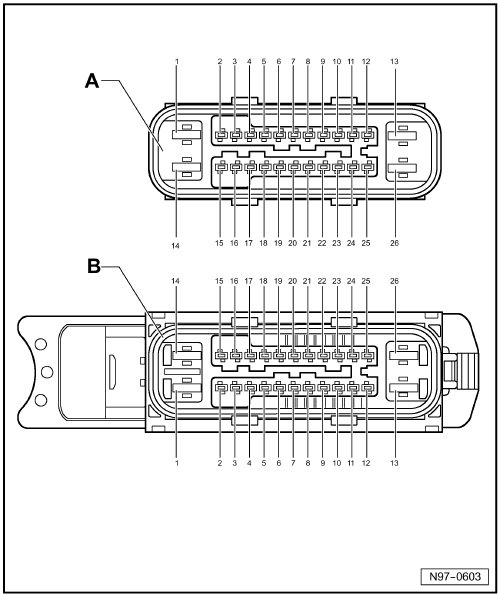

26-pin, Pin Arrangements:







A - ABS/EDL Control Module -J104-
Connector:

B - 26-Pin Connector -T26a-, on wiring harness



47-pin, Pin Arrangements:







A - ABS/EDL Control Module -J104-
• Only with ESP
Connector:

B - 47-Pin Connector -T47a-, on wiring harness
