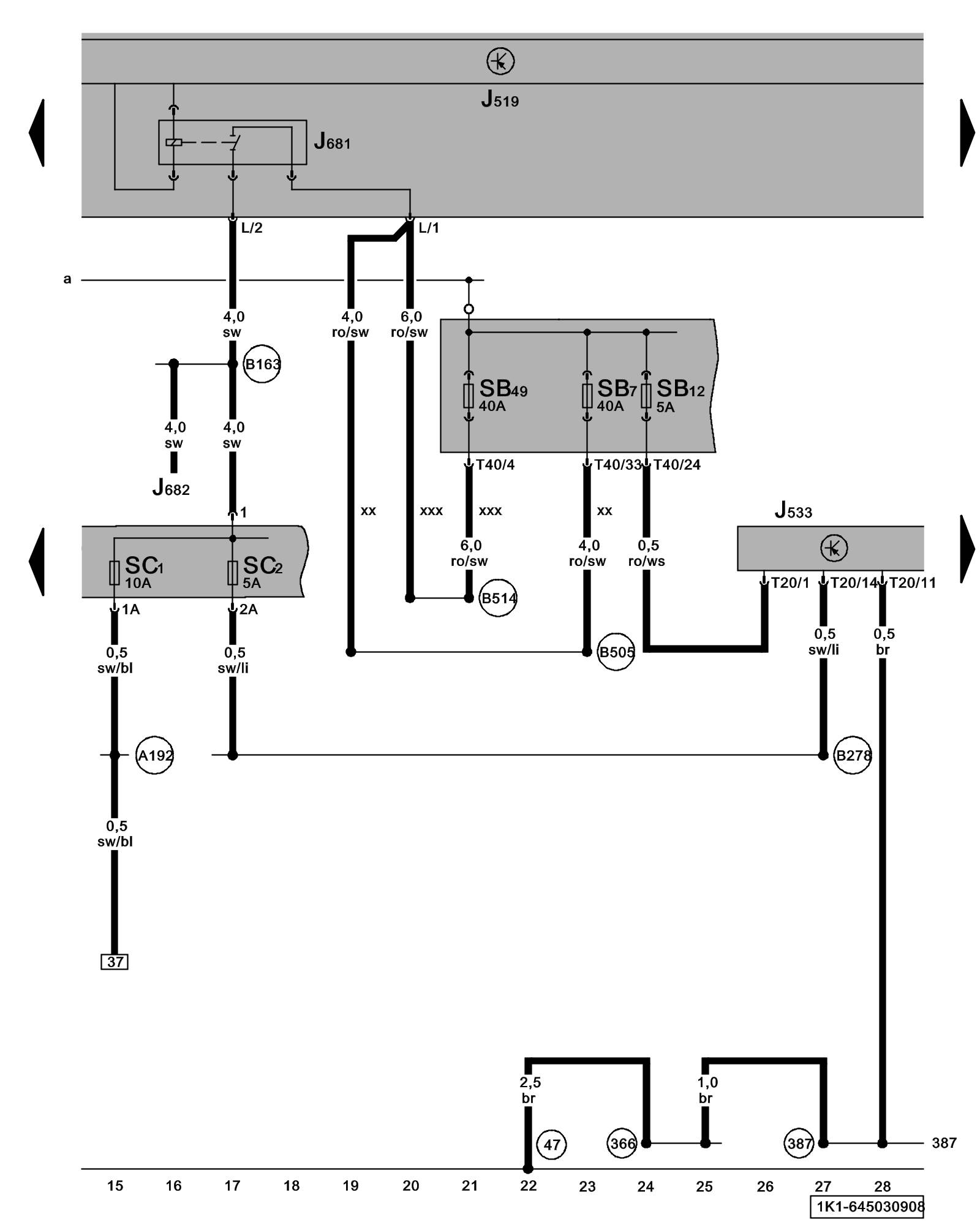

Diagram 645/3 (Tracks 15-28)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Data Bus On Board Diagnostic Interface, Power Supply Relay 2 (terminal 15)





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J519 - Vehicle Electrical System Control Module

J533 - Data Bus On Board Diagnostic Interface, in left footwell, near center console

J681 - Power Supply Relay 2 (terminal 15) Overview Of Relay Carrier

J682 - Power Supply Relay (terminal 50) Overview Of Relay Carrier

SB7 - Fuse 7 (on fuse panel B) Overview Of Fuses (SA), (SB)

SB12 - Fuse 12 (on fuse panel B) Overview Of Fuses (SA), (SB)

SB49 - Fuse 49 (on fuse panel B), electronics box High Overview Of Fuses (SA), (SB)

SC1 - Fuse 1 (on fuse panel C) Overview Of Fuses (SC) And Circuit Breaker

SC2 - Fuse 2 (on fuse panel C) Overview Of Fuses (SC) And Circuit Breaker

T20 - 20-Pin Connector

T40 - 40-Pin Connector

(47) - Ground Connection (in front right footwell) Overview of Ground Connections In Interior

(366) - Ground Connection 1 (in main wiring harness)

(387) - Ground Connection 22 (in main wiring harness)

(A192) - Plus Connection 3 (15a) (in instrument panel wiring harness)

(B163) - Plus Connection 1 (15) (in interior wiring harness)

(B278) - Plus Connection 2 (15a) (in main wiring harness)

(B505) - Plus Connection 9 (30a) (in instrument panel wiring harness)

(B514) - Plus Connection 10 (30a) (in instrument panel wiring harness)

xx - Only models with electronics box Low

xxx - Only models with electronics box High
