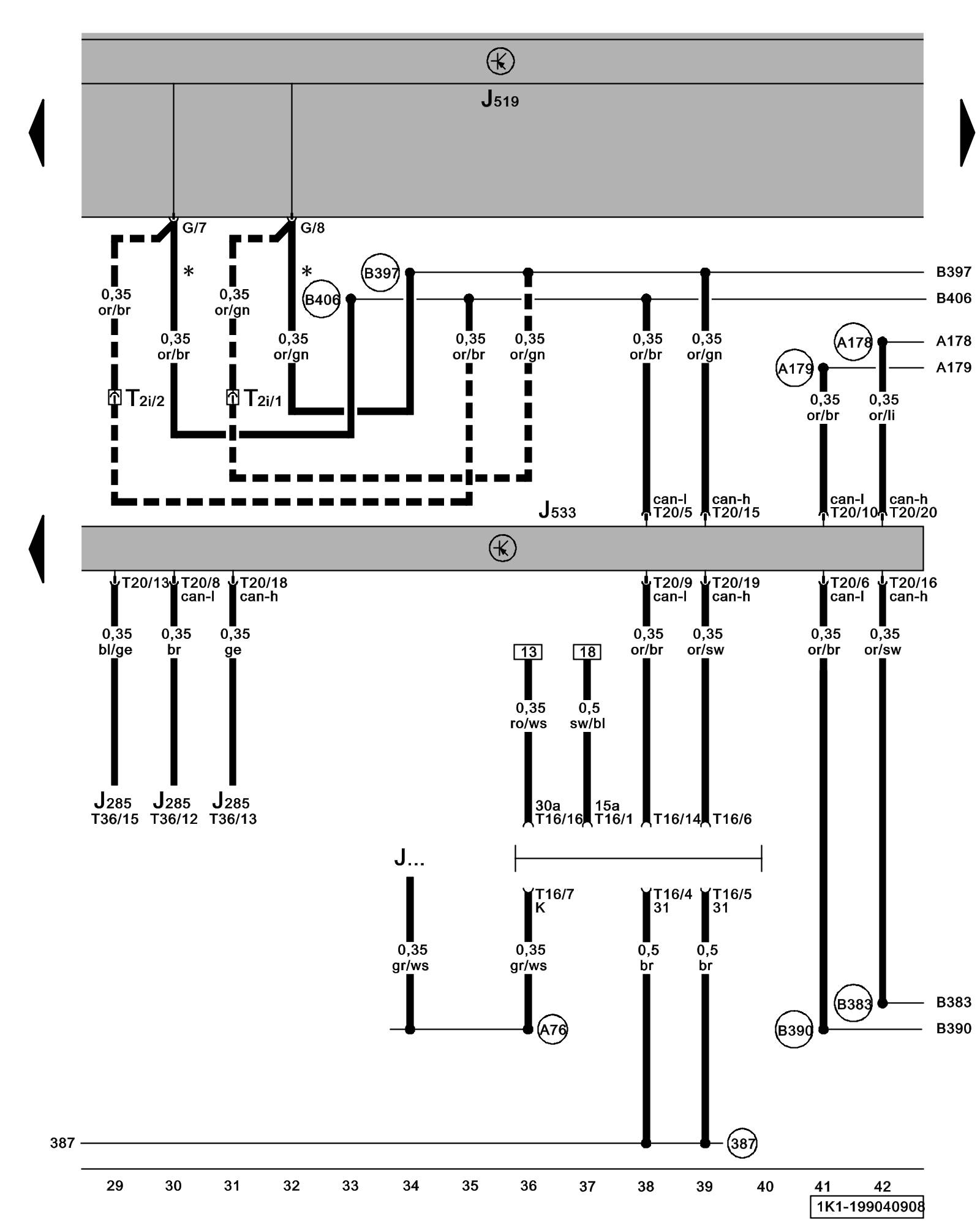

Diagram 199/4 (Tracks 29-42)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Data Bus On Board Diagnostic Interface, Data Link Connector (DLC)





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J285 - Instrument Cluster Control Module

J519 - Vehicle Electrical System Control Module

J533 - Data Bus On Board Diagnostic Interface, in left footwell, near center console

J... - Engine Control Modules (ECM)

T2i - Double Connector, black, under instrument panel, left

T16 - 16-Pin Connector, under instrument panel, left, Data Link Connector (DLC)

T20 - 20-Pin Connector

T36 - 36-Pin Connector

(387) - Ground Connection 22 (in main wiring harness)

(A76) - Diagnosis Wire K Connection (in instrument panel wiring harness)

(A178) - Infotainment High-Bus Connection (in instrument panel wiring harness)

(A179) - Infotainment Low-bus Connection (in instrument panel wiring harness)

(B383) - Powertrain CAN-Bus High Connection 1 (in main wiring harness)

(B390) - Powertrain CAN-Bus Low Connection 1 (in main wiring harness)

(B397) - Comfort System CAN-Bus High Connection 1 (in main wiring harness)

(B406) - Comfort System CAN-Bus Low Connection 1 (in main wiring harness)

* - Only models with factory trailer hitch

- - - - Only models with preparation for Trailer Operation
