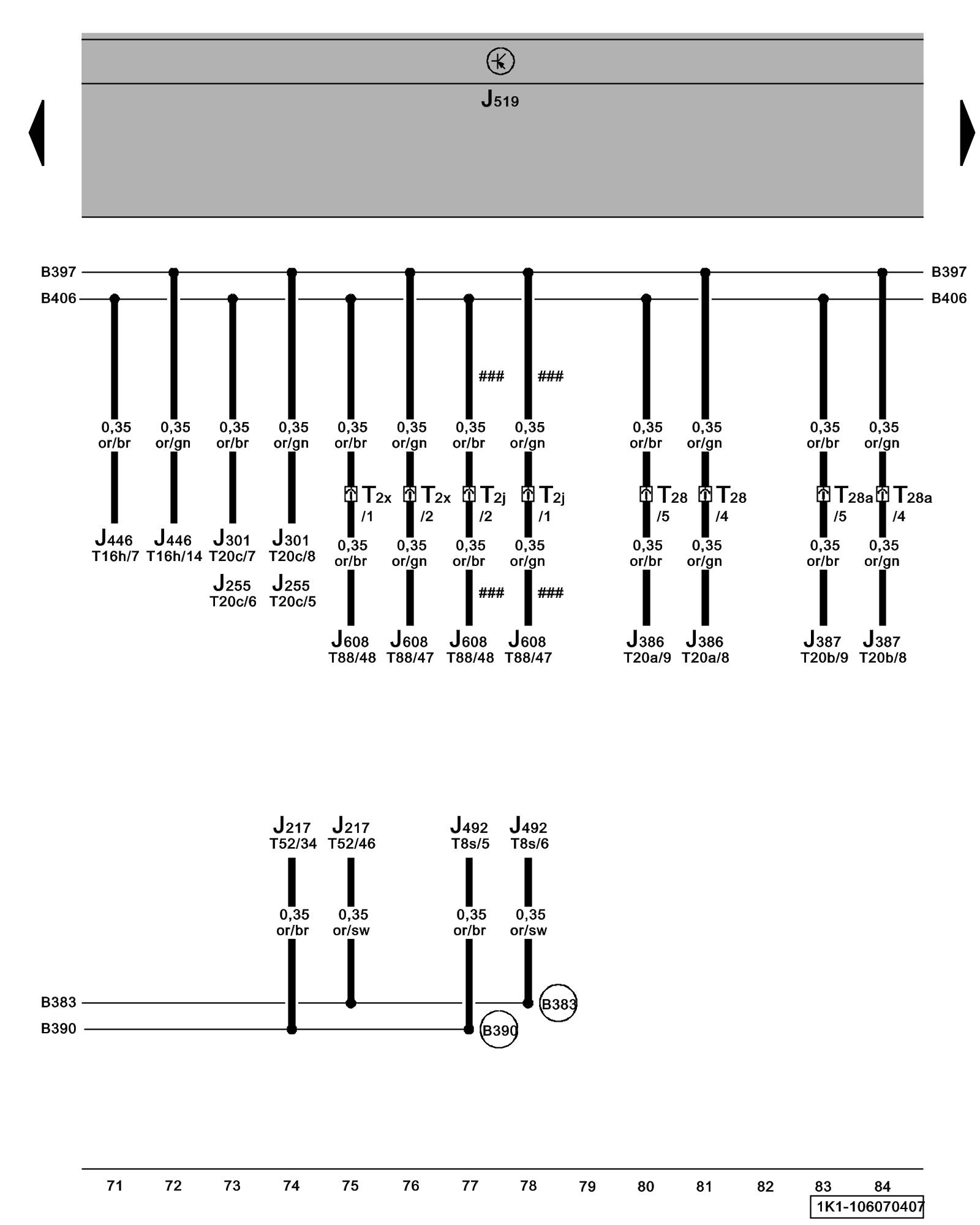

Diagram 106/7 (Tracks 71-84)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Connector for: Parking Aid, A/C Control Module, Climatronic Control Module, Driver's Door/ Front Passenger's Door Control Module, Transmission Control Module (TCM), All-Wheel Drive, Special Purpose Vehicles





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J217 - Transmission Control Module (TCM) Automatic Transmission 09G

J255 - Climatronic Control Module Climatronic A/C System With Automatic Control Component Overview

J301 - A/C Control Module Climatic A/C System With Manual Control Component Overview

J386 - Driver's Door Control Module Locations

J387 - Front Passenger's Door Control Module Locations

J446 - Parking Aid Control Module Parking Aid Systems

J492 - All-Wheel Drive Control Module

J519 - Vehicle Electrical System Control Module

J608 - Special Purpose Vehicle Control Module

T2j - Double Connector, under instrument panel, center

T2x - Double Connector, under instrument panel, center

T8s - 8-Pin Connector

T28 - 28-Pin Connector, on left A-pillar

T28a - 28-Pin Connector, on right A-pillar

T16h - 16-Pin Connector

T20a - 20-Pin Connector

T20b - 20-Pin Connector

T20c - 20-Pin Connector

T52 - 52-Pin Connector

(B383) - Powertrain CAN-Bus High Connection 1 (in main wiring harness)

(B390) - Powertrain CAN-Bus Low Connection 1 (in main wiring harness)

### - Only special purpose vehicle with handicapped equipment

Previous Diagram 106/6 (Tracks 57-70)

Next Diagram 106/8 (Tracks 85-98)
