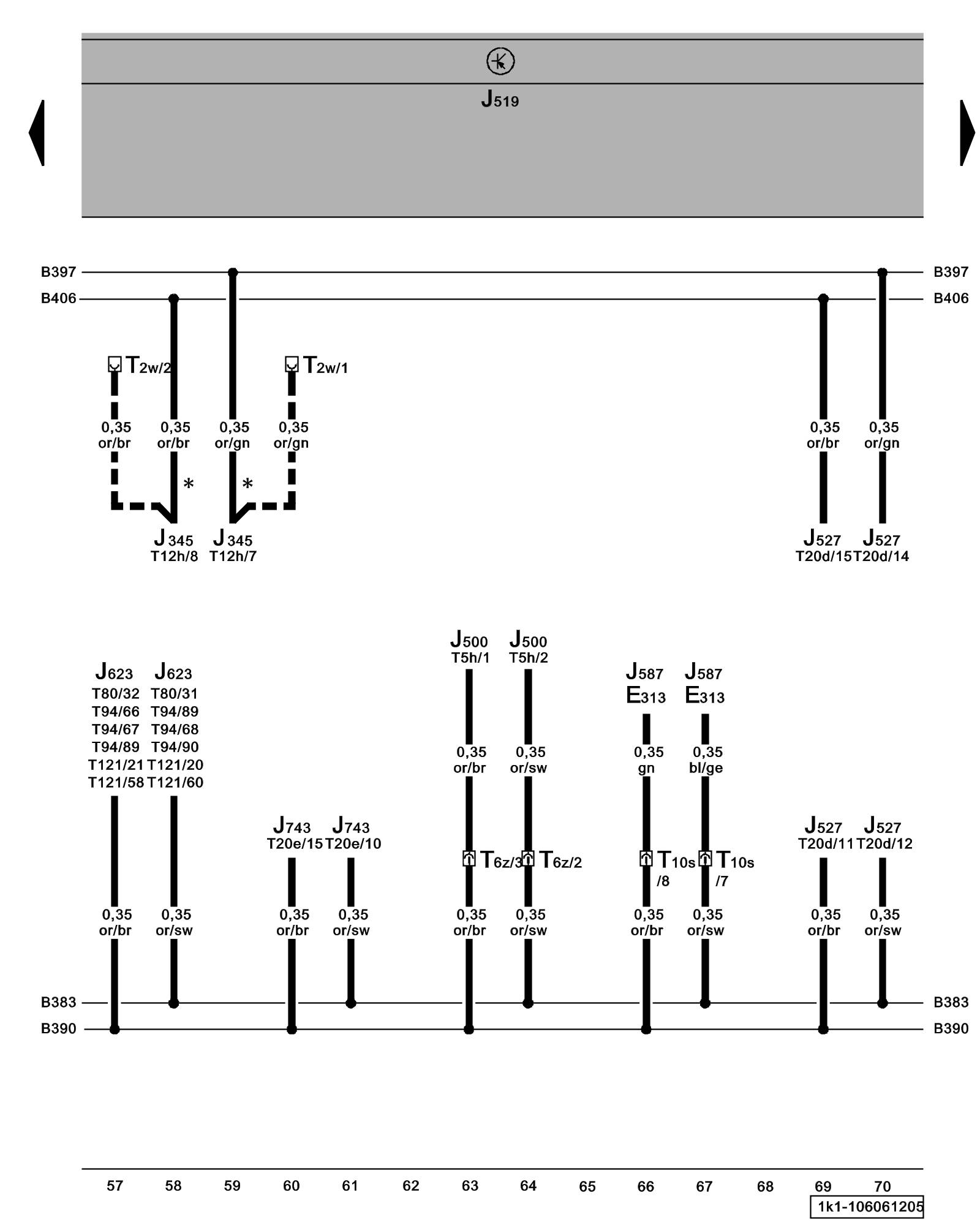

Diagram 106/6 (Tracks 57-70)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Connector for: Towing Recognition, Steering Column Electronic System, Engine Control Module, Direct Shift Gearbox (DSG) Mechatronic, Power Steering Control Module, Selector Lever Sensor





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

E313 - Selector Lever

J345 - Towing Recognition Control Module

J519 - Vehicle Electrical System Control Module

J500 - Power Steering Control Module Control Modules in Front Part of Vehicle

J527 - Steering Column Electronic Systems Control Module Locations

J587 - Selector Lever Sensors Control Module Locations

J623 - Engine Control Module (ECM) Control Modules in Front Part of Vehicle

J743 - Direct Shift Gearbox (DSG) Mechatronic

T2w - Double Connector, blue, under instrument panel, left

T5h - 5-Pin Connector

T6z - 6-Pin Connector, near left headlamp

T10s - 10-Pin Connector, under selector lever trim

T12h - 12-Pin Connector

T20d - 20-Pin Connector

T20e - 20-Pin Connector

T80 - 80-Pin Connector

T94 - 94-Pin Connector

T121 - 121-Pin Connector

* - Only models with factory trailer hitch

- - - - Only models with preparation for Trailer Operation
