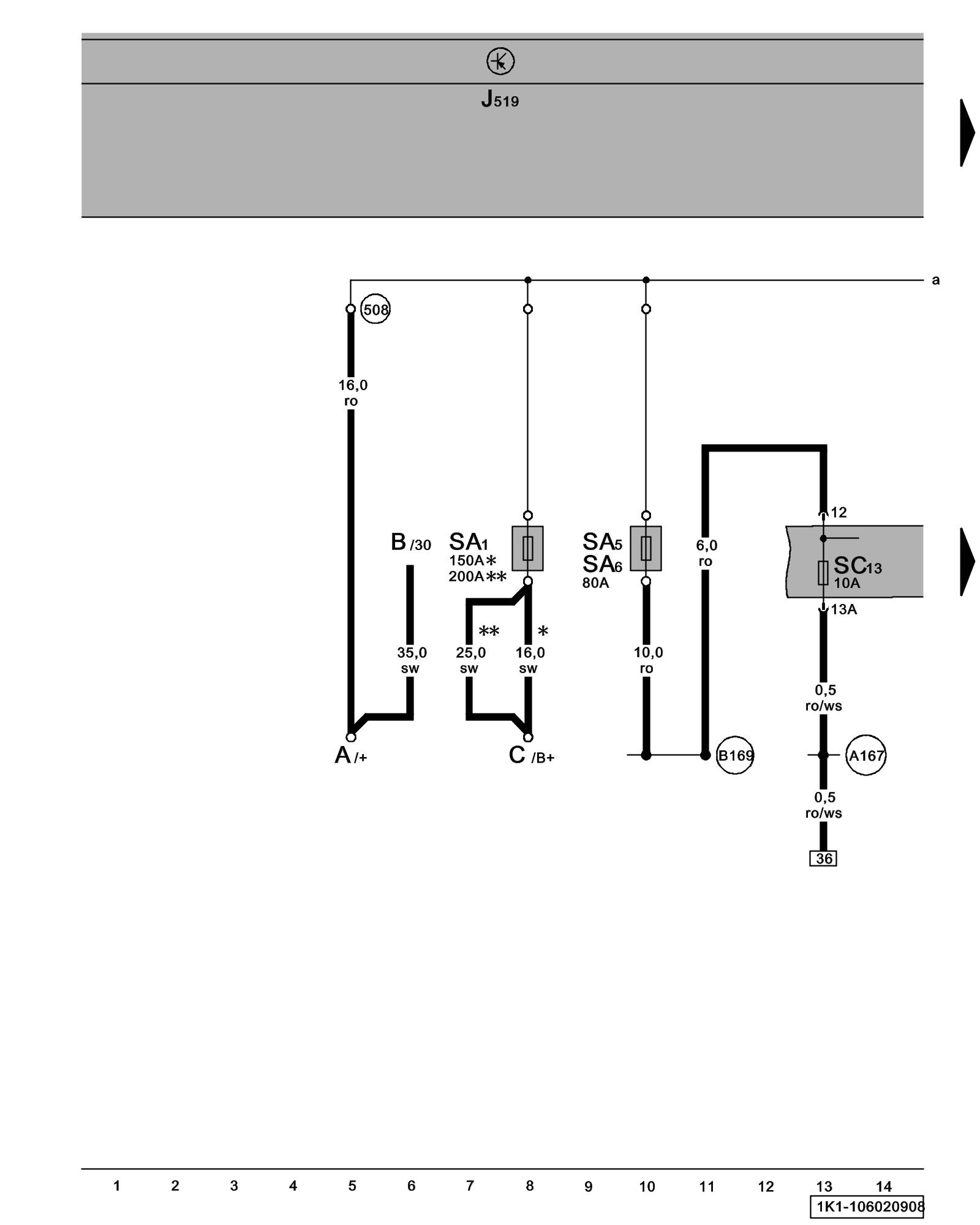

Diagram 106/2 (Tracks 1-14)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Fuse SA1, SA5, SA6, SC13





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

A - Battery

B - Starter

C - Generator (GEN)

J519 - Vehicle Electrical System Control Module

SA1 - Fuse 1 (on fuse panel A) Overview Of Fuses (SA), (SB)

SA5 - Fuse 5 (on fuse panel A), from November 2005 Overview Of Fuses (SA), (SB)

SA6 - Fuse 6 (on fuse panel A), through October 2005 Overview Of Fuses (SA), (SB)

SC13 - Fuse 13 (on fuse panel C) Overview Of Fuses (SC) And Circuit Breaker

(508) - Threaded Connection terminal 30 (on electronics box)

(A167) - Plus Connection 3 (30a) (in instrument panel wiring harness)

(B169) - Plus Connection 1 (30) (in interior wiring harness)

* - Models with 90 A/ 120 A generator

** - Models with 140 A generator
