Electronic Throttle Control Indicator: Locations

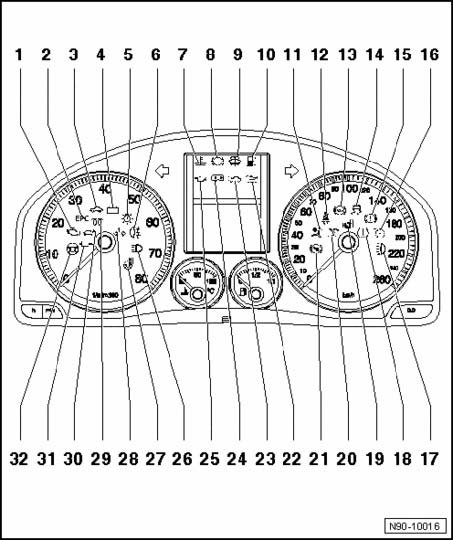

Instrument Cluster Indicator Lamps

NOTE:
Different instrument clusters are used, depending on vehicle equipment. Therefore, the arrangement of the control lamps may deviate from the illustration.







1. Electric On Board Diagnostics (EOBD)

2. Engine interference (EPC)
Indicator lamp only present in vehicles with gasoline engine

3. Immobilizer lock-out
4. Load control
5. Lamp failure
6. Rear fog lamps
7. Low coolant
8. Brake lining wear
9. Low washer fluid level
10. Fuel reserve
11. Airbag indicator
12. Safety belt
13. Anti-lock braking system (ABS)
14. Electronic Stability Program (ESP)
15. Insufficient brake fluid/parking brake
16. Cruise Control System
17. Daytime running lamps
18. Tire pressure control indicator
19. Water in fuel
20. Backrest lock

21. Shift lock
Warning lamp only present in vehicles with automatic transmission

22. Oil level
23. Hood open
24. Door open
25. Oil pressure
26. High beam headlamp
27. Steering wheel heater
28. Trailer turn signals

29. Glow plug system
Warning lamp only present in vehicles with Diesel engine

30. Fuel tank cap open
31. Exhaust filter
32. Electric steering (EPS-Electronic Power Steering)
