Lumbar Support Lever, Rabbit From My 2009

Front Seats

Lumbar Support Lever, Rabbit from MY 2009

The lumbar adjustment lever is an option on the following seats:

• Front Seats with Manual Height Adjustment

• Passenger Seat with Pass-Through

• Removing and installing on the left side of the vehicle is described here. Removing and installing on the right side is identical.

Removal

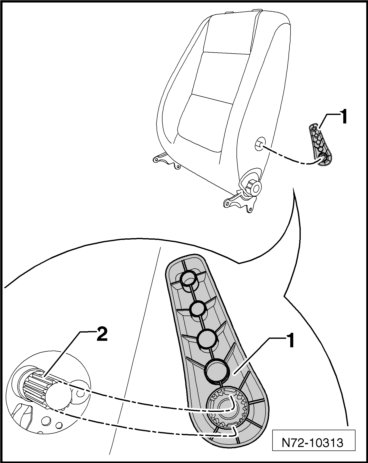

- Remove the lever from the shaft.





Installation

- To install, perform the steps used for removal in reverse order.





• Make sure the splines in the lumbar adjustment lever - 1 - align with the splines on the shaft - 2 -.
