Backrest Release, Seat With Pass-Through

Front Seats

Backrest Release, Seat with Pass-Through

Removal

- Mount the fixture for seat repair (VAS 6136) on the engine and transmission holder (VAS 6095).

- Remove front seat. Refer to => [ Front Seat ]. Front Seat

- Attach the seat to the fixture for seat repair (VAS 6136).

- Remove right trim on seat. Refer to => [ Right Trim, Seat with Pass-Through ] Right Trim, Seat With Pass-Through

- Remove left trim on seat. Refer to => [ Left Trim, Seat with Pass-Through ] Left Trim, Seat With Pass-Through

- Release backrest and fold backrest onto seat.

- Loosen cover from seat frame in front seat backrest area. Cover is not removed from front seat backrest.

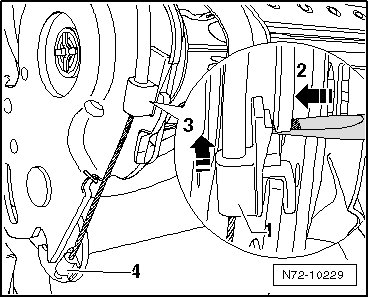

- Remove bracket - 1 - on left side of seat frame. To do this, release locking tab in - direction of arrow 2 - using a screwdriver and remove bracket in - direction of arrow 3 -.





- Remove release clip - 4 - from seat frame.

- Remove the release cable from the retainers on the seat frame.

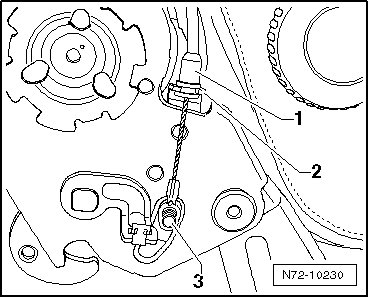

- Unclip bracket - 1 - from retainer - 2 - on right side.





- Slide the release cable downward and remove from the retaining pins - 3 -.

Installation

To install, perform the steps used for removal in reverse order.
