Rear Lid Latch Bracket

Rear Lid Latch Bracket

Removing

- Remove lock carrier cover.

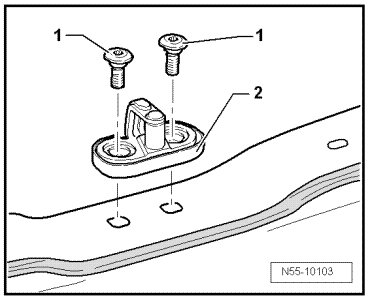

- Remove screws - 1 - and striker pin.

Installing

- Assemble the latch bracket - 2 -.





- Tightening specification for bolts - 1 -: 23 Nm.

- Adjust latch bracket => [ Rear Lid, Adjusting ] Adjustments

Further installation is in reverse order of removal.
