Rear Door Panel: Service and Repair

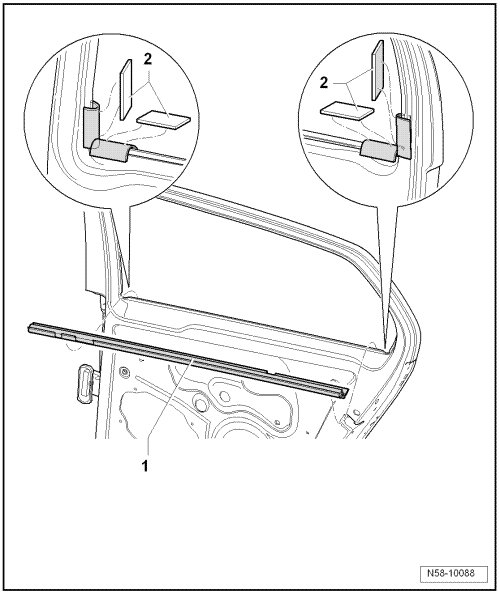

Inner Door Panel Assembly Overview

• The description applies to the right side. The left side is similar





1 Window shaft seal

2 Insulation

• Qty. 4

• 20 mm x 40 mm commercially available cloth reinforced adhesive tape
