Compact Disc Player (CD): Service and Repair

CD Changer, Transportation Safeguard, Activating in RCD 500

Transport protection device must be activated before shipping of RCD 500 or deactivated when installing a new unit. This takes place electronically over the unit's buttons. After activating the transportation safeguard, the CD changer mechanism is brought into transportation position.

Activating Transportation Safeguard

Unit condition: ON or OFF, wiring connections must be connected to RCD 500.

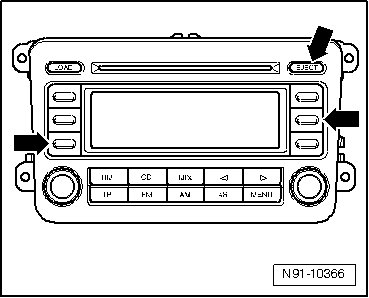

- Press and hold buttons marked with - arrows - simultaneously for 5 seconds.





If CD changer mechanism has achieved transportation position, TRANSPORT appears in radio unit display.

Deactivating Transportation Safeguard

- Connect and install RCD 500 radio unit.

- Deactivate transportation lock with CANCEL button.
