Parking Aid Control Module -J446-

Control modules in rear part of vehicle

Parking Aid Control Module -J446-




Component Location:







Behind the right luggage compartment side trim -Arrow-

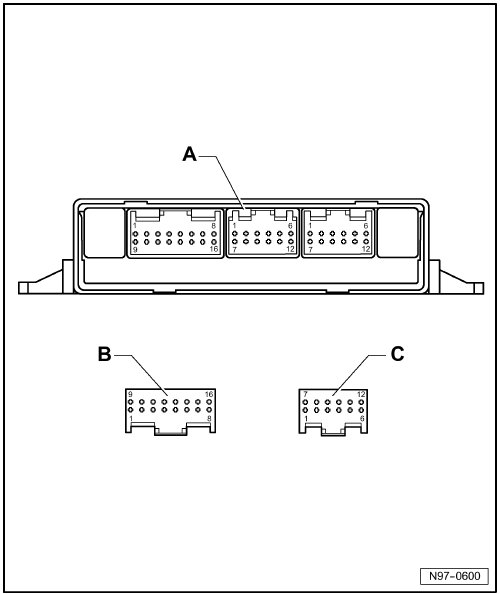

Pin Arrangements:







A - Parking Aid Control Module -J446-
Connector:

B - 16-Pin Connector -T16h-, on wiring harness

C - 12-Pin Connector -T12l-, on wiring harness
