Exterior Rearview Mirror

Exterior Rearview Mirror

Torque wrench 2 to 10 Nm (V.A.G 1783)

• The following describes removing and installing the left exterior mirror. Removing and installing the right exterior mirror is identical.

Removing






- Remove the front driver side door trim panel..

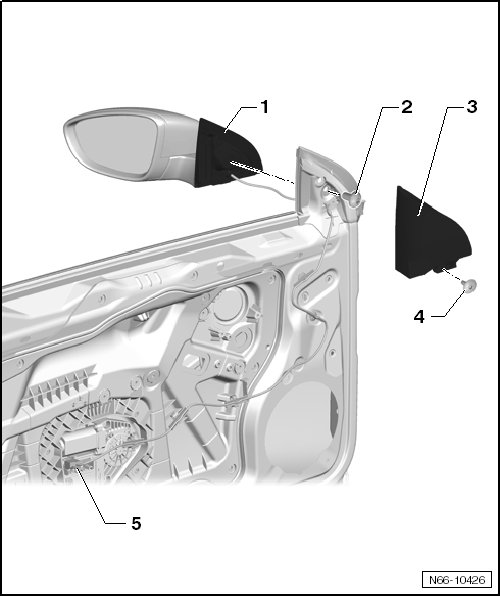

- Remove the bolt - 4 - for the cover - 3 - and then remove the cover.

- Disconnect the connector - 5 - for the exterior mirror.

- Remove the screw - 2 -.

- Remove the exterior mirror - 1 - and guide the wire through the door opening.

Installation

Install in reverse order of removal.

- Tightening specification: screws - 2 - for exterior rearview mirror 10 Nm

• The functions test is performed before the door trim is installed.
