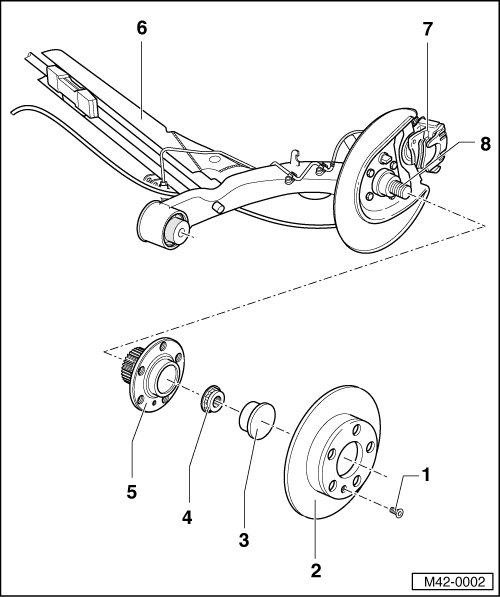

Wheel Bearing Assembly Overview

Wheel Bearing Assembly Overview





1 Phillips-head screw

2 Brake disc

3 Dust cap

• Always replace

An appropriate seal can only be achieved with a new dust cap.

Only then can an optimal function and long service life be guaranteed

• Pressing off and driving in => [ Wheel Bearing and Hub Unit ] Wheel Bearing and Hub Unit.

4 Self-locking 12 point nut

• M20 x 1.5

• Tightening specification => [ Rear Axle ] Rear Axle Component Tightening Specifications.

• Always replace

5 Wheel hub with wheel bearing and rotor

Wheel bearing, wheel hub and rotor are installed together in one housing.

This wheel bearing/wheel hub unit is maintenance-free and adjustment free. It is not possible to adjust or service the unit.

6 Axle beam

7 Brake caliper

8 Stub axle

• Straightening work prohibited.

• Do not re-cut threads.
