Brake Booster Pressure Sensor






Brake Booster Pressure Sensor

Removing

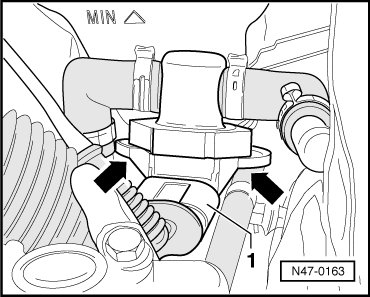

- Remove plenum chamber cover.

- Disconnect harness connector - 1 -.





- Remove bolts - arrows -.

- Remove brake booster pressure sensor ( G294).

Installing

Installation is performed in reverse order of removal.
