Impact Sensor: Locations







Airbag Systems

Airbag Crash Sensors

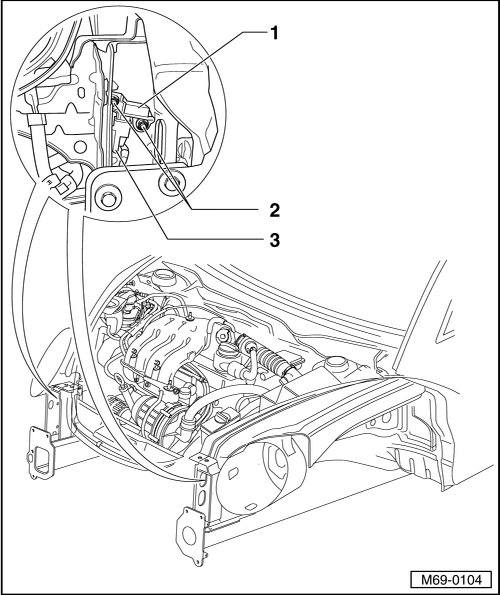

Front Airbag Crash Sensors Assembly Overview







1 - Driver Front Airbag Crash Sensor -G283- and Front Passenger Front Airbag Crash Sensor -G284-

3 - Connector





Front Side Airbag Crash Sensors Assembly Overview







1 - Driver Side Airbag Crash Sensor -G179- and Front Passenger Side Airbag Crash Sensor -G180-

3 - Connector
