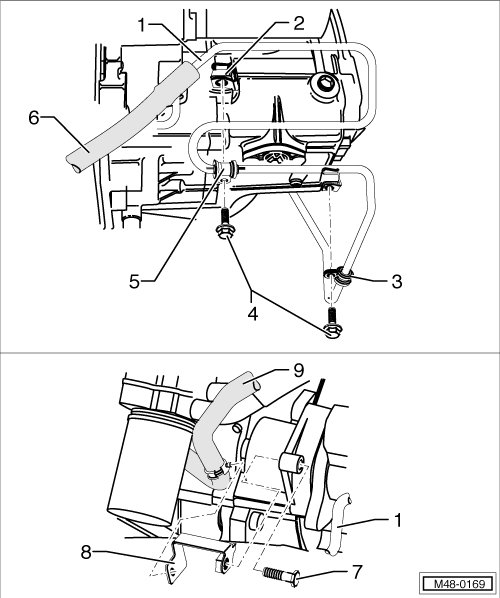

Pressurized Line Mount Overview

Pressurized Line Mount Overview





1 Pressurized line

2 Speed nut

3 Clamp

4 Hex bolt

• M8 x 28

• Tightening specification => [ Pressurized Line to Manual Transmission 02J ] Pressurized Line Mount to Transmission Tightening Specifications.

5 Clamp

6 Pressure hose

7 Hex bolt

• M8 x 28

• Tightening specification => [ Pressurized Line to Manual Transmission 02J ] Pressurized Line Mount to Transmission Tightening Specifications.

8 Bracket

9 Intake hose
