Heating, Ventilation

Footwell/Defrost Door Cable

Cable sleeve marking: Green

Prerequisite

Heating and ventilation controls are installed.

Installing and adjusting





- Turn air distribution rotary knob to left onto stop.

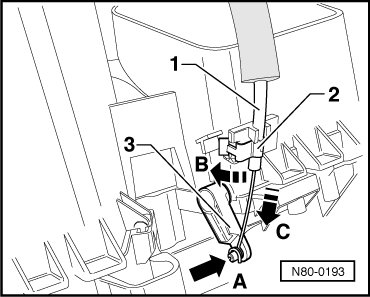

- Attach end of cable - 1 - to the temperature door lever - 3 -, arrow - A -.

- Press footwell/defrost door lever onto stop arrow - C - and attach outer cable - 1 - with clip - 2 -, arrow - B -.

- Turn air distribution rotary control knob to left and right onto stops.

When turning the rotary control knob both end stops must be reached.
