Water Strip Assembly Overview






Pillar and Side Trims, Convertible

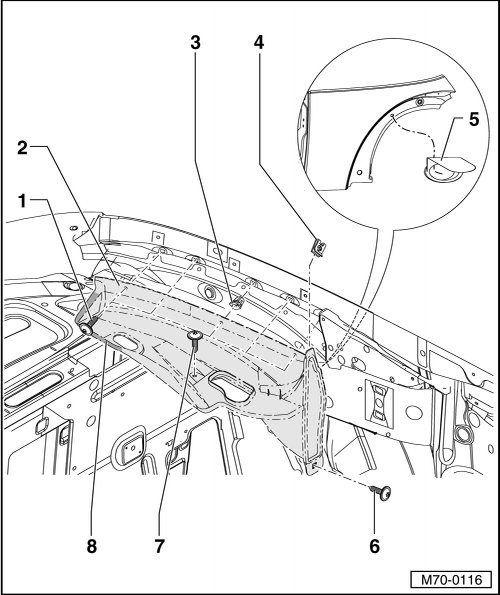

Water Strip Assembly Overview





1 - Bolt

2 - Water Strip

3 - Expanding Nut

4 - Metal Nut

5 - Water Drain Hose

6 - Bolt

7 - Bolt

8 - Sealant D 469 101 A3
