Front Treble Speaker
Front Treble Speaker
Speakers
Front Treble Speaker

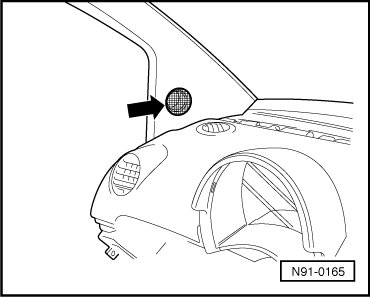

The speakers -
arrow
- are installed in the upper trim of the A-pillar.
Removing
The speakers cannot be removed. In the case of replacement, the trim must be replaced.
-
Remove the A-pillar trim.
