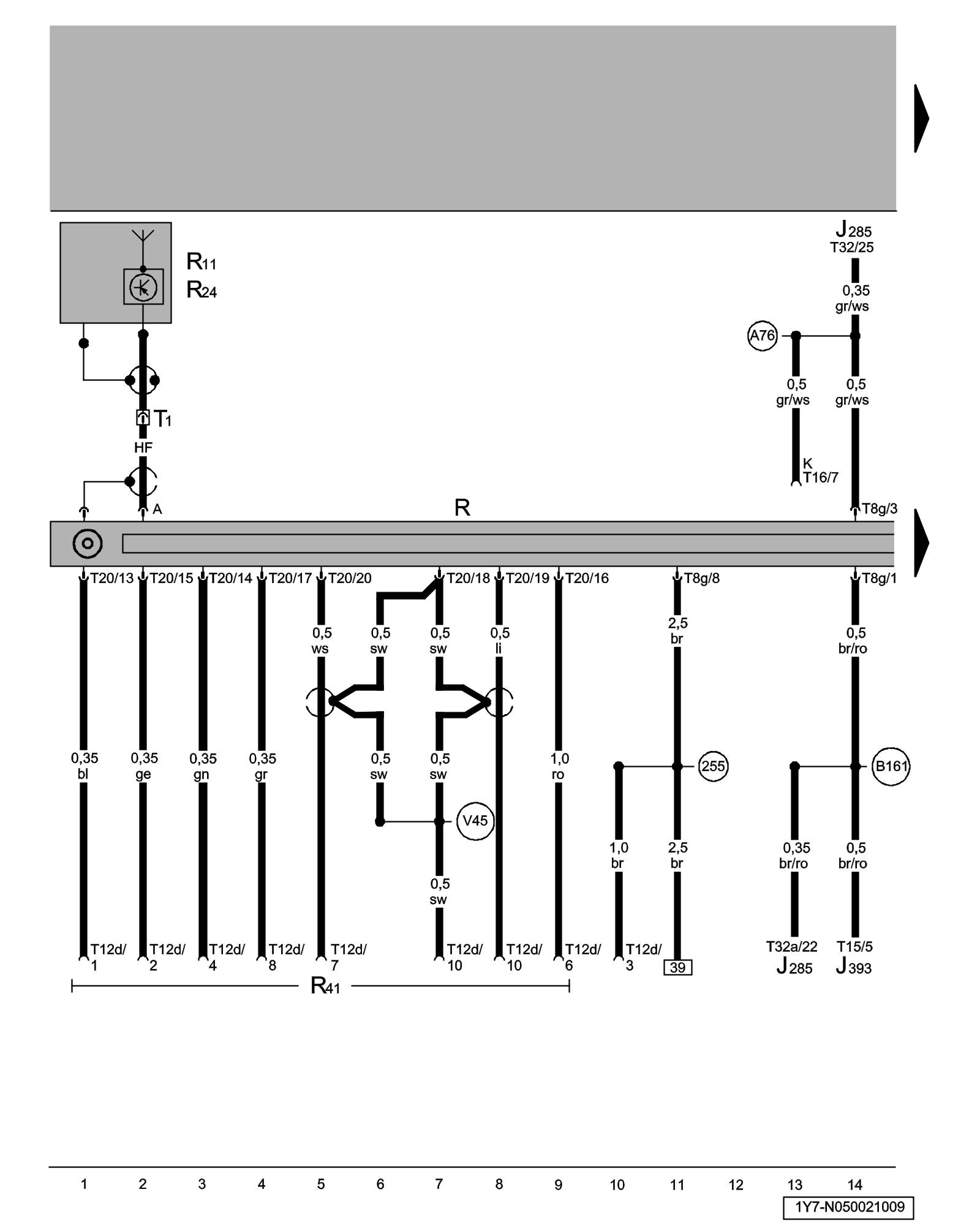

Diagram 650/2 (Tracks 1-14)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Radio with CD Changer





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J285 - Instrument Cluster Control Module

J393 - Comfort System Central Control Module Central Locking System

R - Radio Premium V and Premium 5.5 Component Overview

R11 - Antenna Locations

R24 - Antenna Amplifier Locations

R41 - CD Changer Premium V and Premium 5.5 Component Overview

T1 - Connector Supply

T8g - 8-Pin Connector

T12d - 12-Pin Connector

T15 - 15-Pin Connector

T16 - 16-Pin Connector, under instrument panel, left, Data Link Connector (DLC)

T20 - 20-Pin Connector, on radio

T32 - 32-Pin Connector, blue, on instrument cluster

T32a - 32-Pin Connector, green, on instrument cluster

(255) - Ground Connection 1 (in radio wiring harness)

(A76) - K-Diagnosis Wire Connection (in instrument panel wiring harness)

(B161) - Anti-Theft Alarm System Connection (in interior wiring harness)

(V45) - Connection 2 (shielding) (in CD-changer wiring harness)

Next Diagram 650/3 (Tracks 15-28)
