Amplifier (R12) Bracket

Amplifier (R12) Bracket

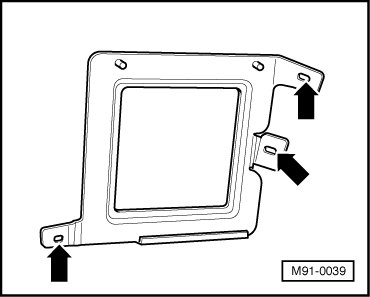

The bracket is secured to the rear cowl panel via 3 nuts - arrows -.

Tightening Specifications: 10 Nm.
