USB Connection Baseplate (R193)

USB Connection Baseplate (R193)

Special tools, testers and auxiliary items required

• Radio Removal Tool (3316)

The USB connection baseplate is located inside the center armrest.

• Make sure the USB connection baseplate is working correctly if there are customer complaints. Refer to the Operating Instructions.

• After connecting the battery, check all the vehicle accessories, for example, the radio, the clock, the Comfort packages. Refer to the Owner's Manual.

Removing

- Switch off ignition, switch off all electrical consumers and remove ignition key.

- Fold the center armrest all the way up.

- Remove any memory devices and their wire connections from the USB connection baseplate.

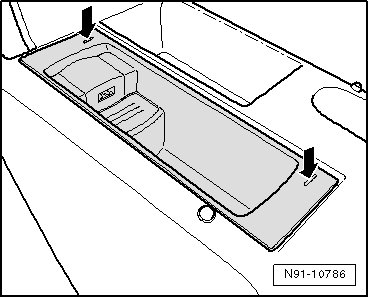

- Insert the (3316) into the slots - arrows - in the USB connection baseplate.





The USB connection baseplate is illustrated as removed for purposes of clarity.

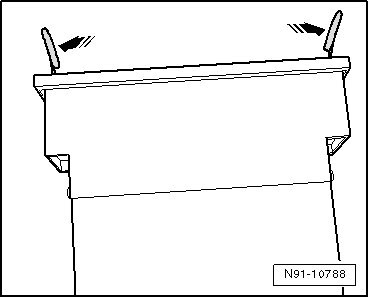

- Expand the (3316) in - direction of arrow - so that locking mechanism can loosen. Using the (3316), remove the USB connection baseplate from the center armrest.





- Disconnect the connector on the USB connection baseplate.

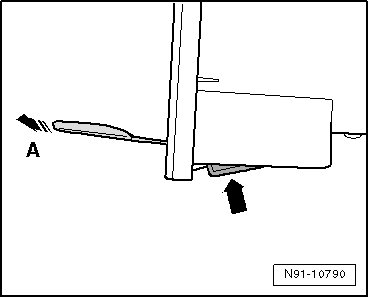

- Press the spring on the USB connection baseplate in - direction of arrow - and at the same time remove the (3316) in - direction of arrow A -.





Installing

- Install the USB connection baseplate into the center armrest so that the USB connection is in the back.

Further installation is in the reverse sequence to removal.











edition 06162010
